Why the component had to be reverse engineered
Marine and offshore equipment is often kept in service long after the original manufacturing information has been lost or the supplier has stopped supporting the component. The article describes a corroded cooling-system end cover aboard the FSO Jasmine as a component that had to be reproduced from the physical part itself through reverse engineering, because no usable pattern or production data was available.
Capturing the geometry on site by 3D scanning meant the replacement could be defined from measured surfaces rather than assumed nominal dimensions — the same starting point used for replacement casting work today.
Details reported in the article
- Vessel
- FSO Jasmine
- Component
- Corroded cooling-system end cover
- Geometry source
- On-site 3D scanning of the existing component
- Mould production
- Binder-jet 3D sand printing (no wooden pattern)
- Reported equipment
- ProMetal RCT furan-based sand printing system
- Company established
- 2011 (as reported in the article)
Only details stated in the published article are listed above. No lead time, tolerance or cost figures are claimed here beyond what the source reports.
The replacement route described
- 01
On-site assessment and scanning

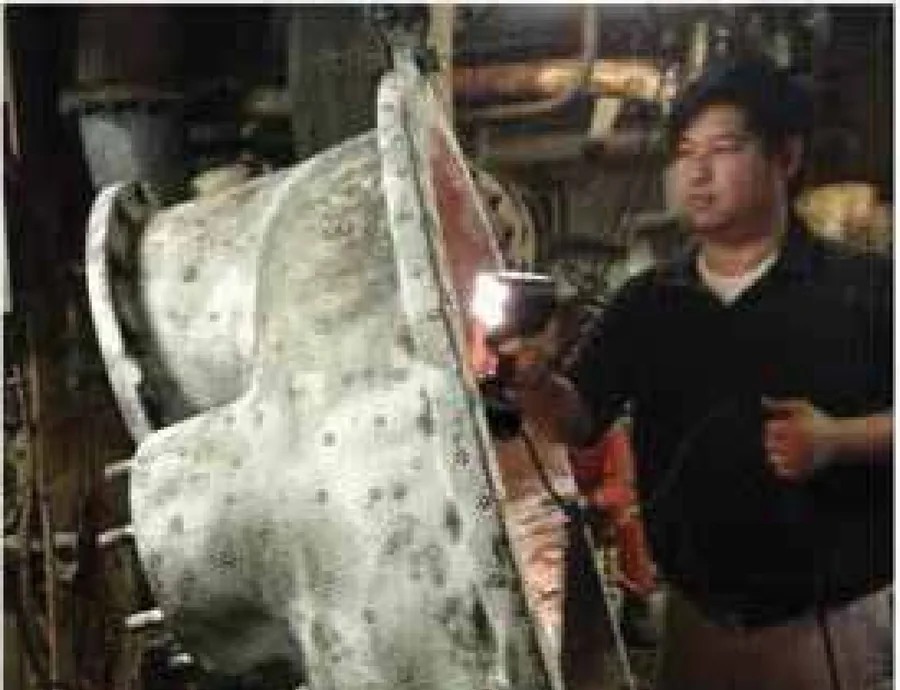

The article reports that the existing corroded component was captured by 3D scanning on site, so the replacement geometry was derived from the part as installed rather than from drawings that were not available.
- 02
Digital geometry preparation
The scan data was used to prepare a digital model of the component suitable for mould design, following the same reverse-engineering route used for replacement work today.
- 03
3D sand printed moulds

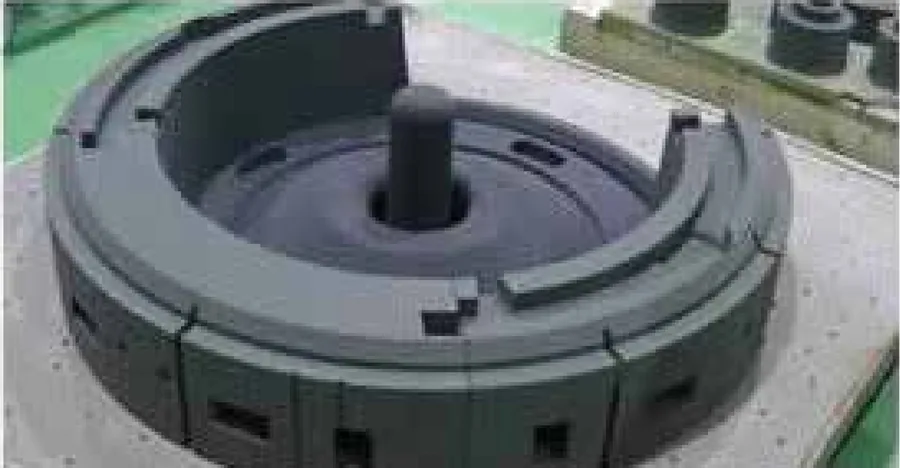

Moulds were produced directly from the digital data by binder-jet sand printing, removing the pattern-making step that normally governs lead time on one-off replacement components.
- 04
Mould assembly and casting

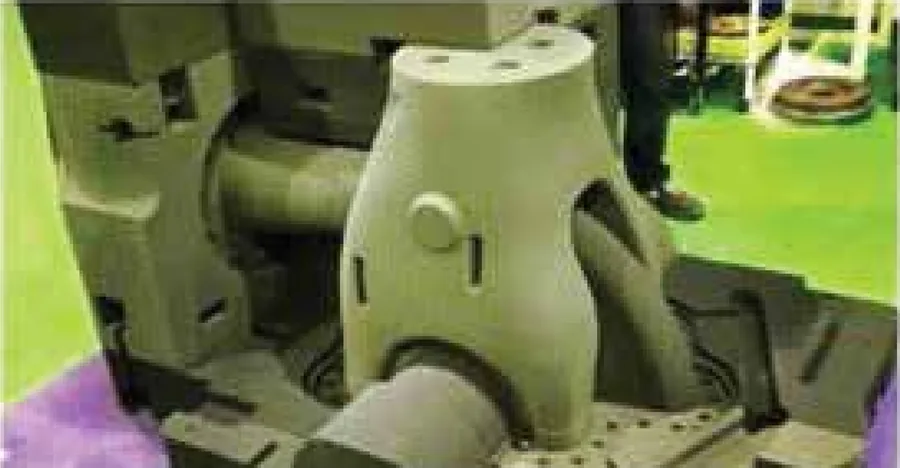

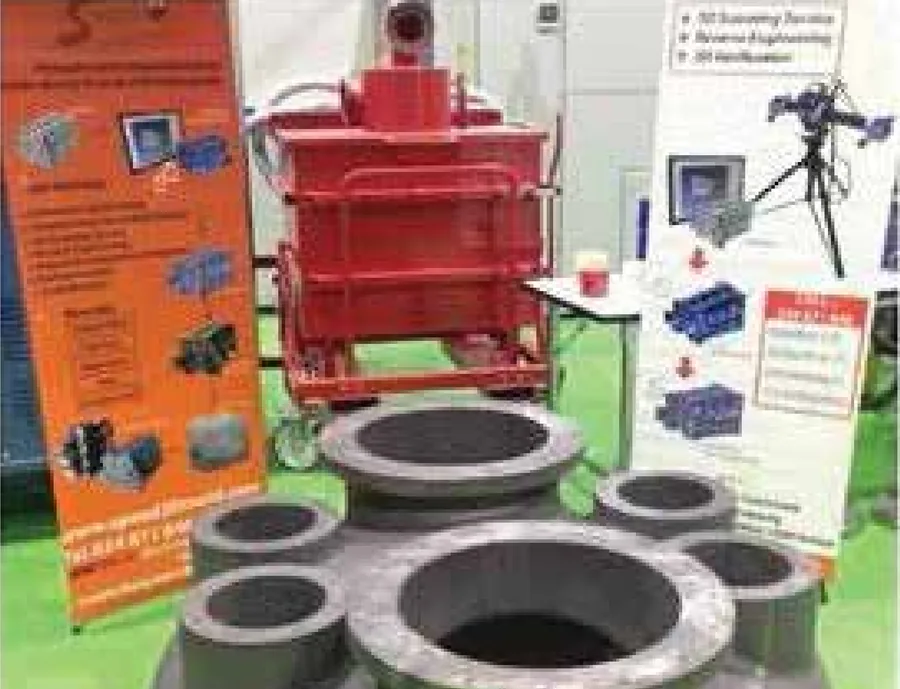

The printed mould sections were assembled and cast to produce the replacement end cover and the related castings shown in the published figures.
