Complex Cast Iron Pump Casing Produced in 2 Weeks
A complex pump casing housing with internal flow passages, curved sections, ribs, and multiple enclosed features—manufactured in cast iron within a two-week lead time for this completed project.
- Component
- Pump Casing Housing
- Material
- Cast Iron
- Project Lead Time
- 2 Weeks
- Key Challenge
- Complex Mold and Core Geometry
The two-week lead time is the result of this specific project. Lead time for new projects depends on component geometry, material, size, quantity, machining, inspection requirements, and available production capacity.
How Fast Can a Complex Cast Iron Pump Casing Be Produced?

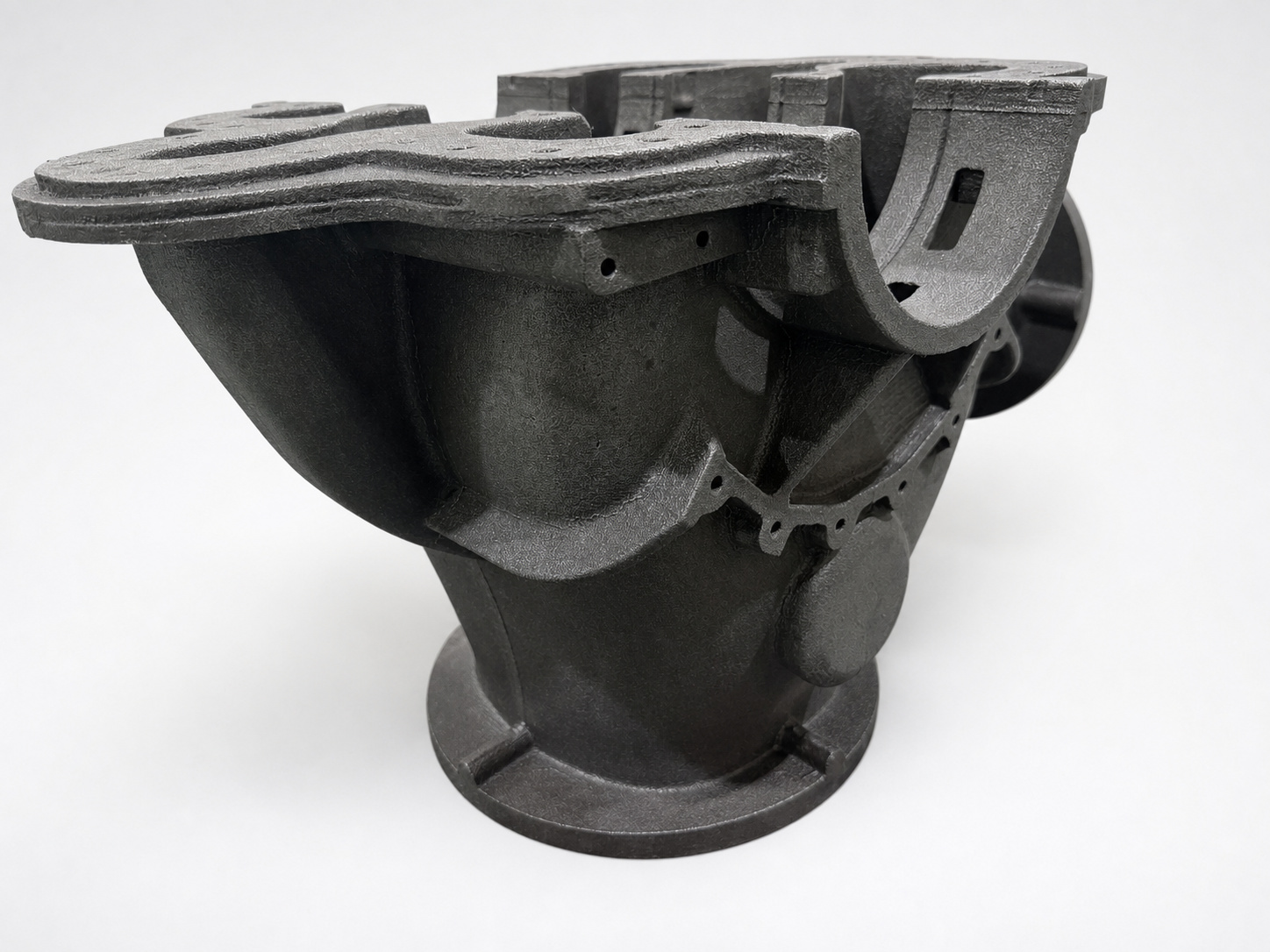

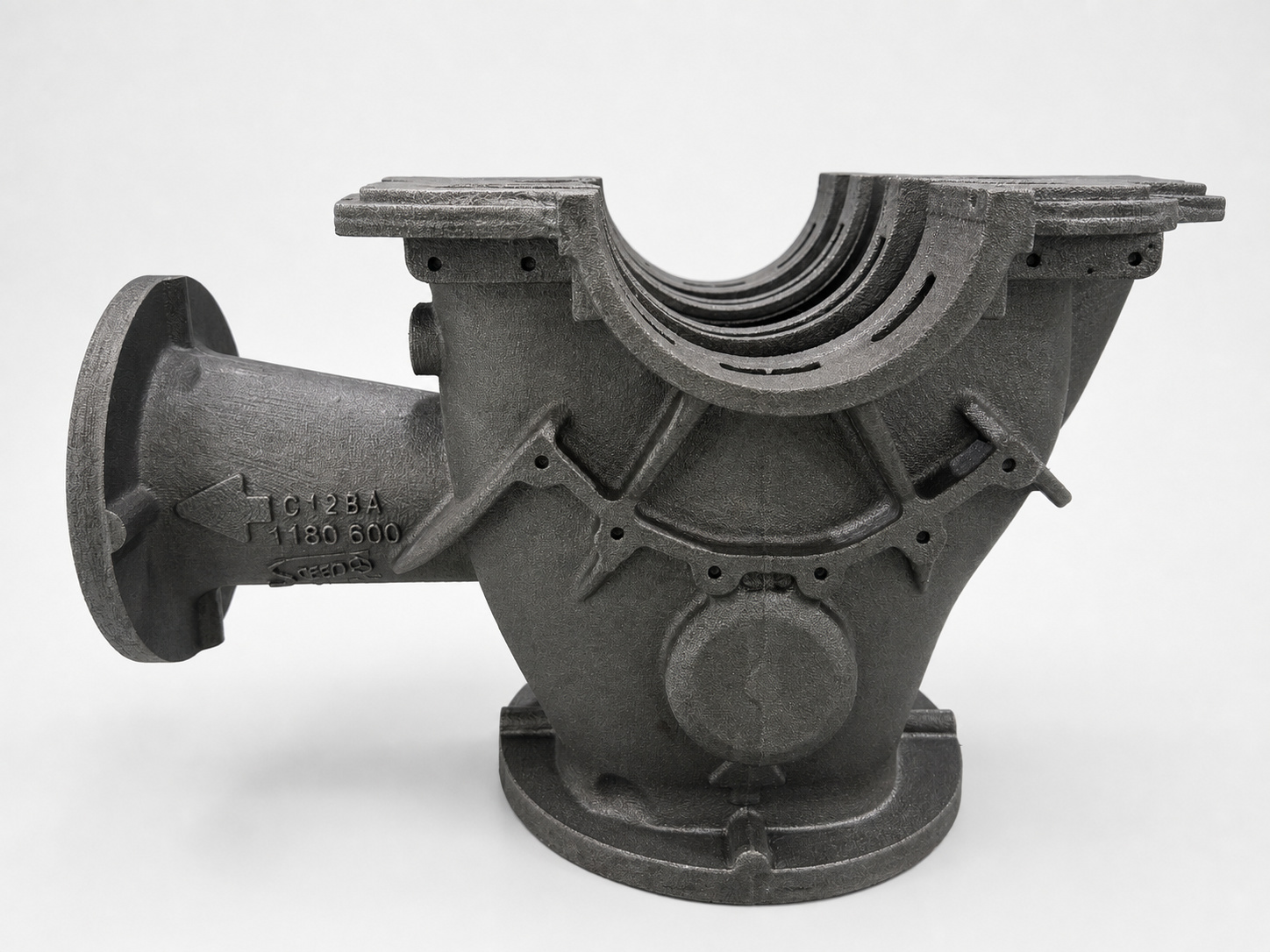

This pump casing housing was manufactured from cast iron within a two-week lead time for this completed project. The component contained complex internal flow passages, curved walls, ribs, enclosed cavities, and multiple connecting features that required coordinated mold and core planning.
A Short Lead Time for a Highly Complex Casting
The manufacturing complexity of a pump casing is not defined only by its external shape. Its internal geometry affects mold construction, core positioning, casting accessibility, and the ability to reproduce the required flow passages.

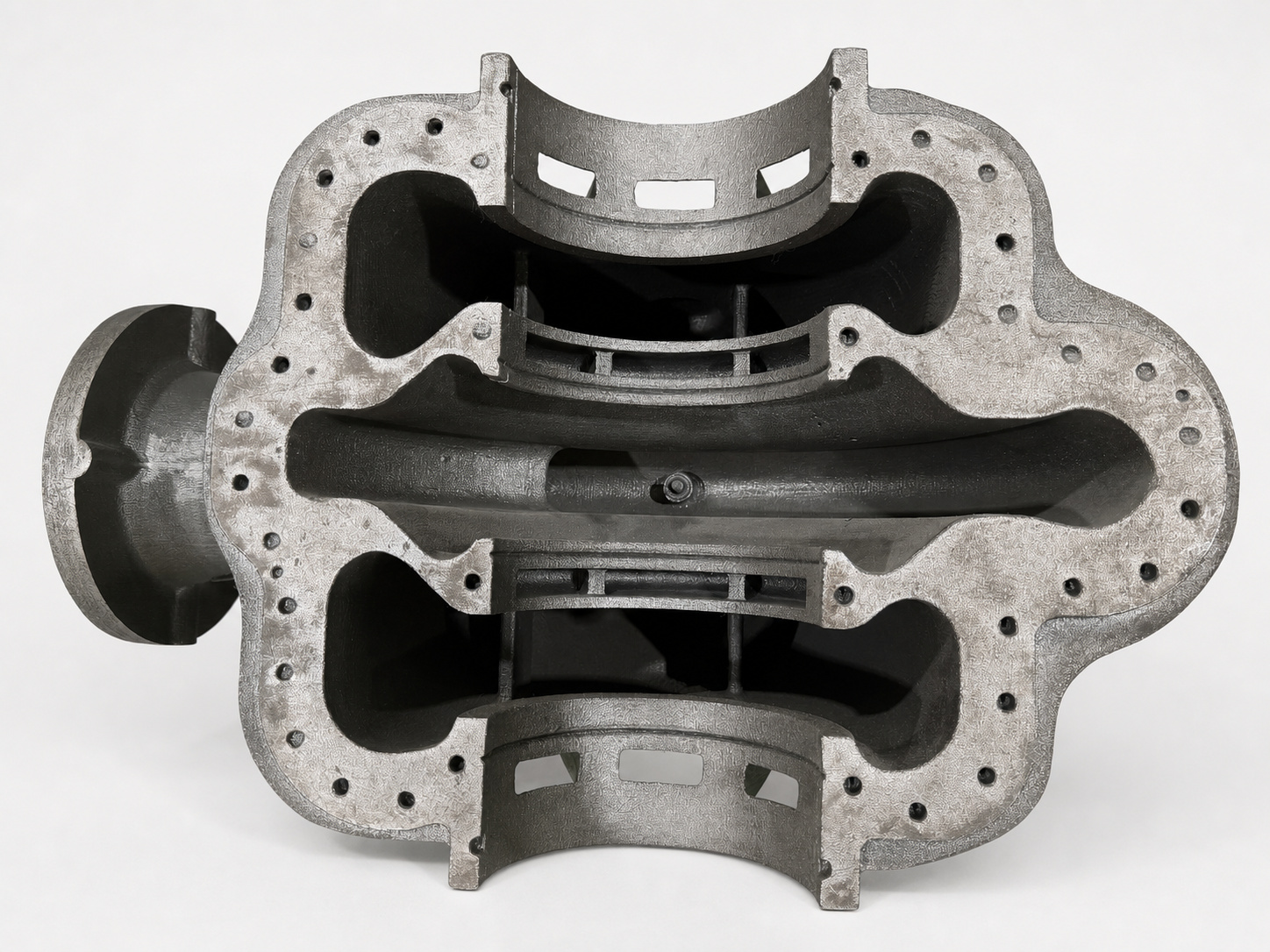

This cast iron pump casing contained intersecting cavities, curved internal walls, narrow openings, reinforcing ribs, and multiple flange and mounting features. These elements had to be considered as one coordinated mold and core system while maintaining the project’s short production schedule.
Complex Internal Passages

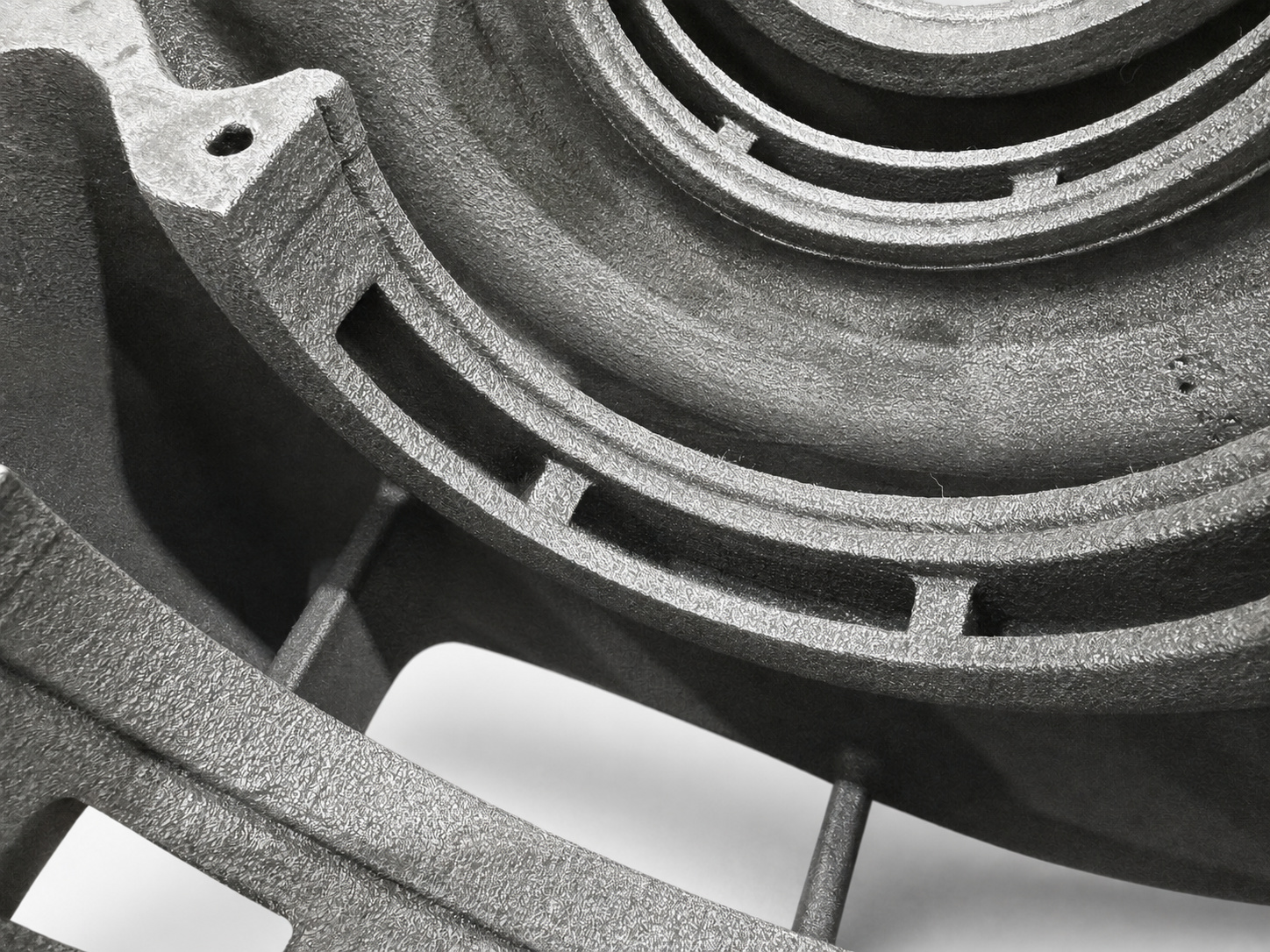

Curved and interconnected internal passages had to be formed inside a single pump housing.
Coordinated Core Features

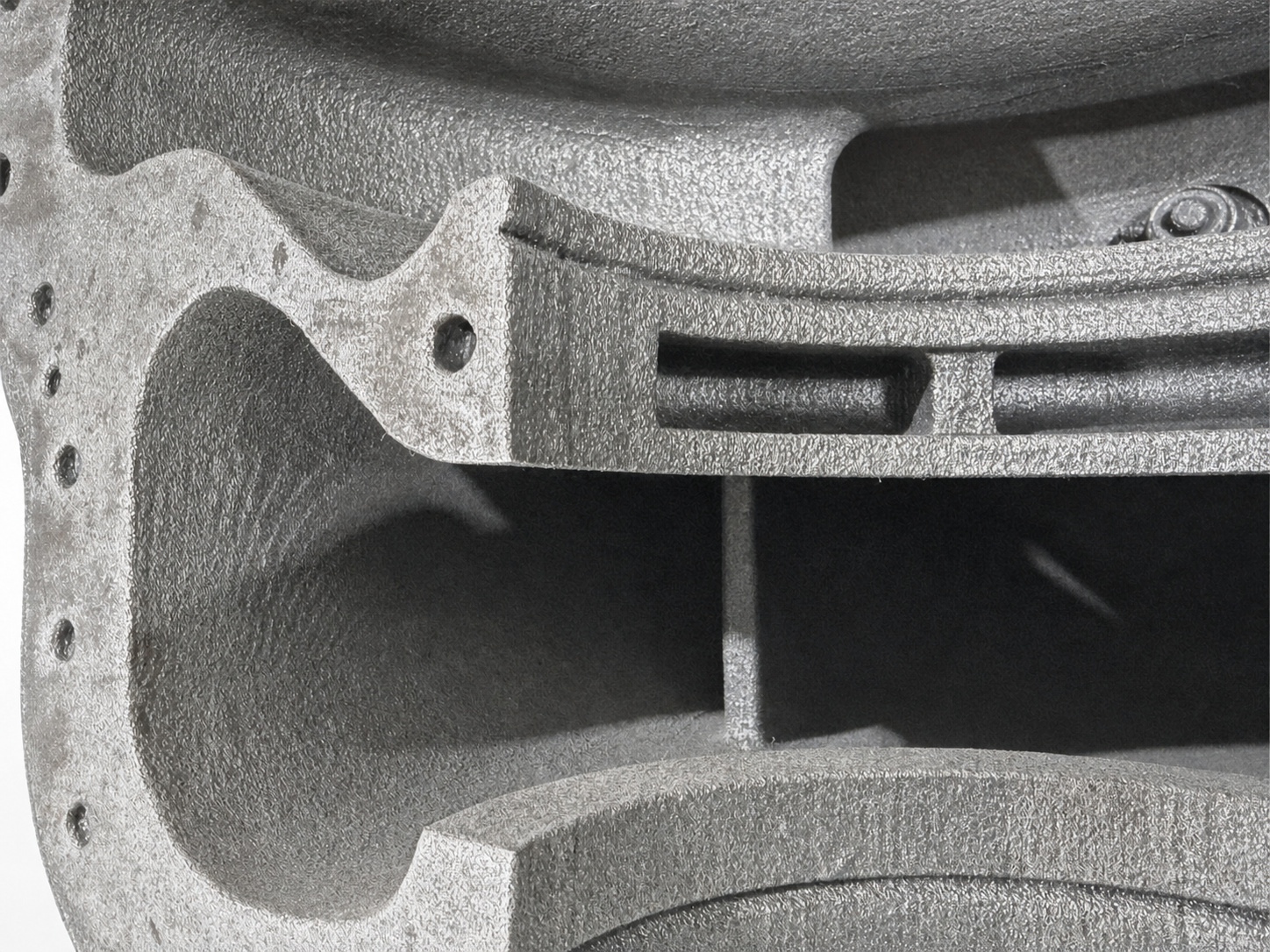

Multiple enclosed cavities, openings, and internal features required coordinated mold and core planning.
Two-Week Project Lead Time
This specific pump casing project was manufactured within a two-week lead time.
Complex Mold and Core Geometry

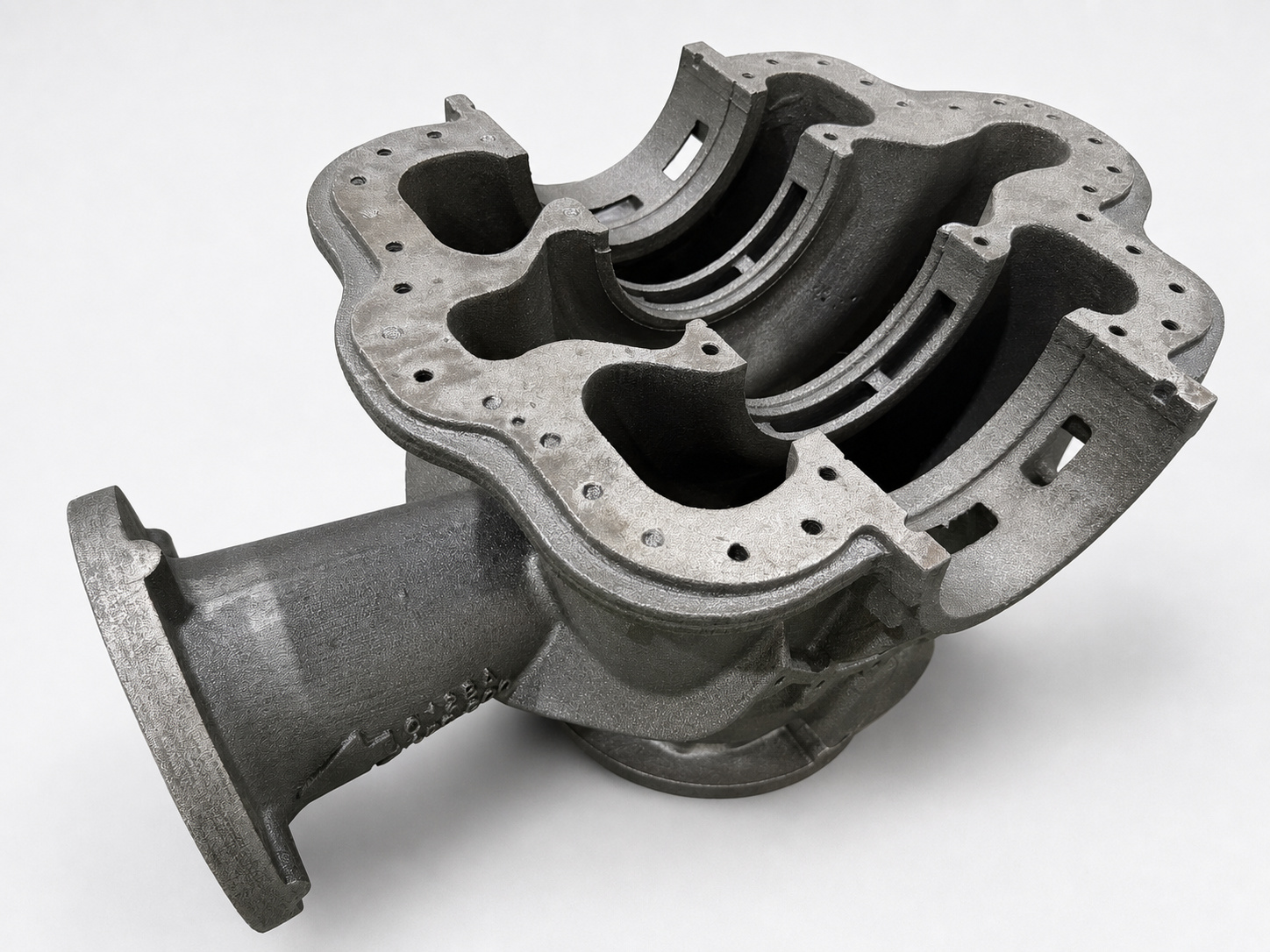

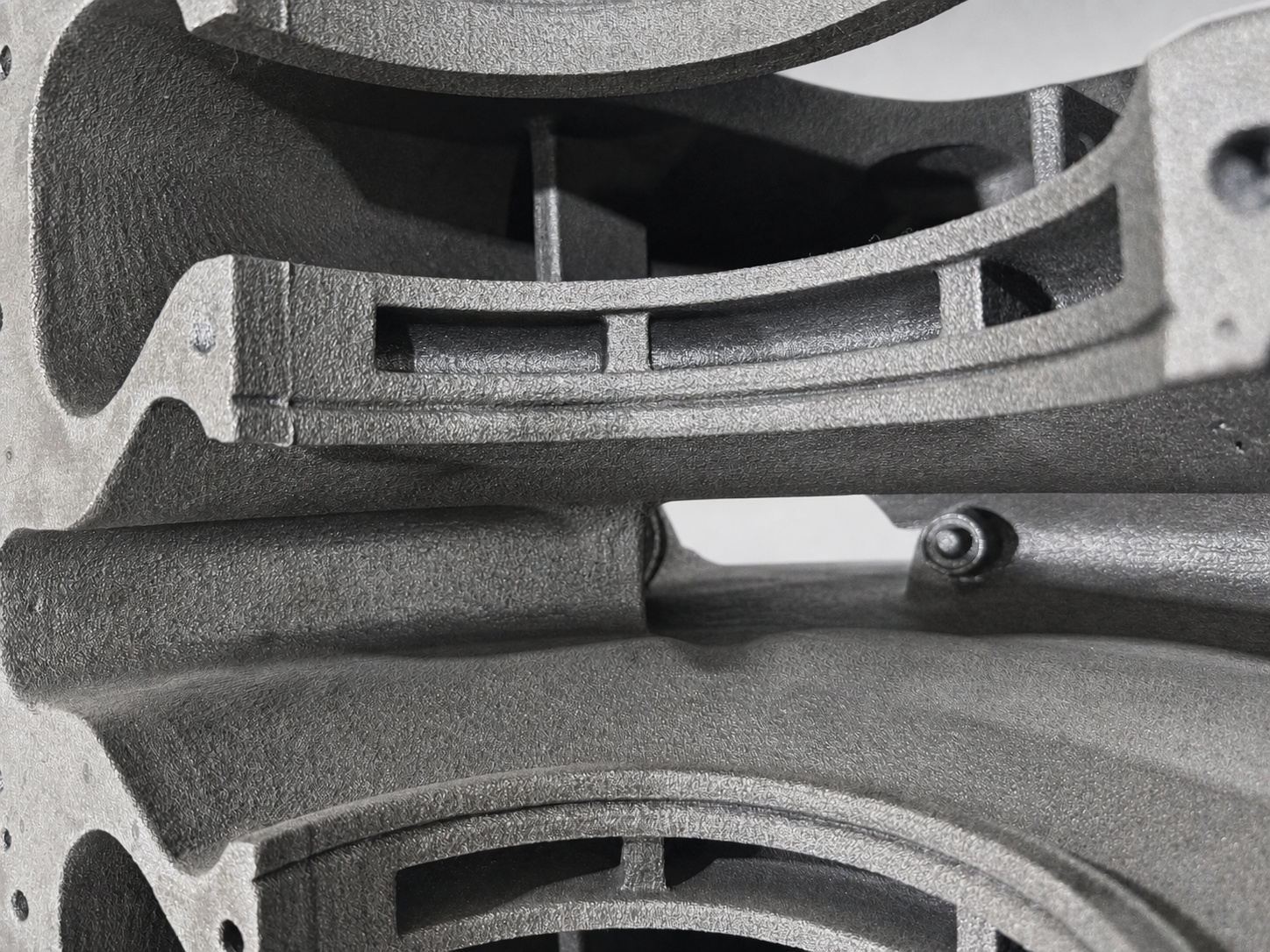

The sectioned casting reveals geometry that cannot be understood from the exterior alone. Curved passages, ribs, separated cavities, openings, and large transitions had to maintain their correct relationship across the pump casing body.
- Curved internal flow passages
- Multiple enclosed and interconnected cavities
- Internal ribs and supporting features

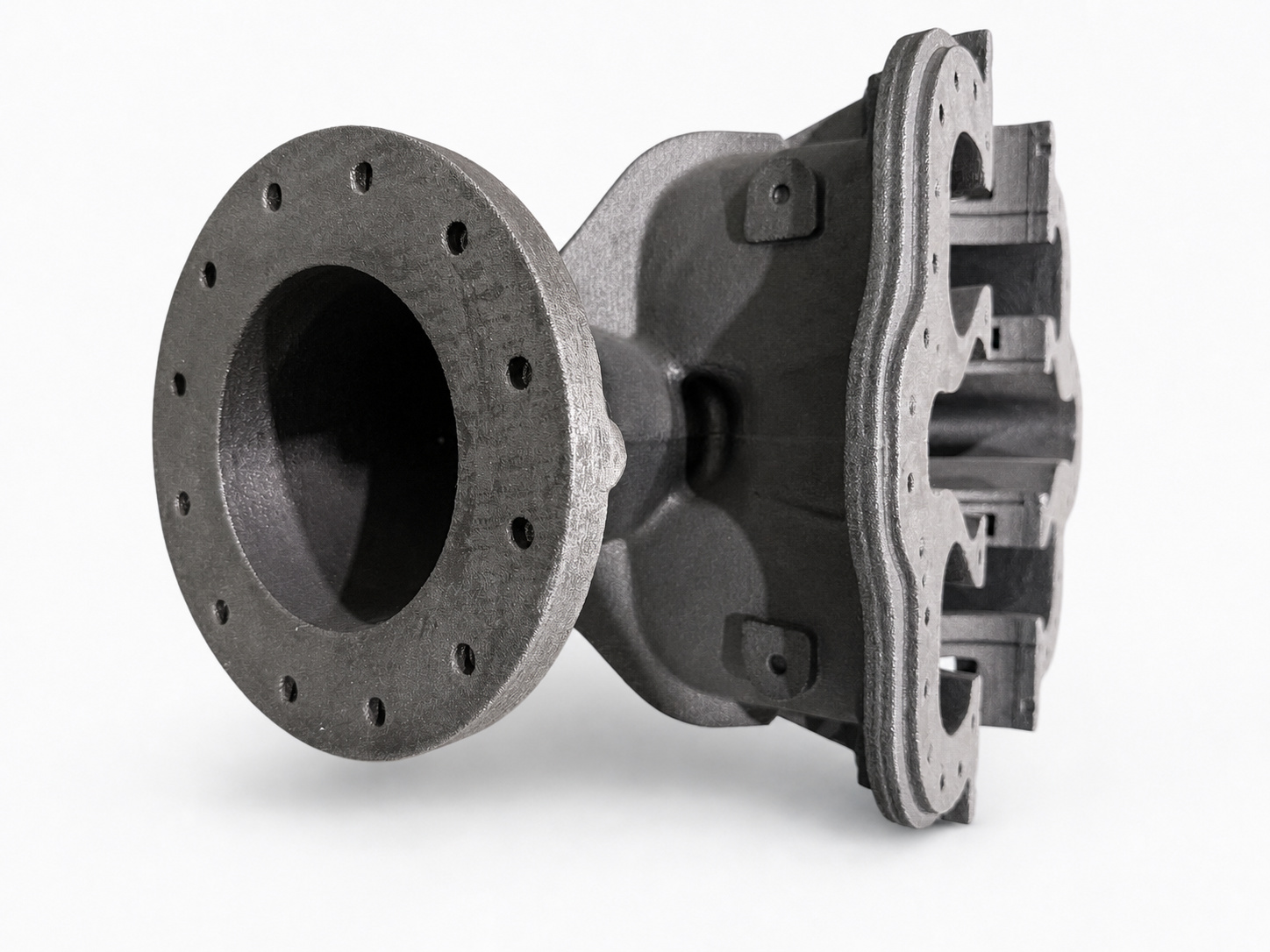

- Flange and mounting-hole locations
- Transitions between the inlet, outlet, and casing body
- Internal features inaccessible through external machining alone
A Coordinated Workflow for Faster Casting Production
The short project schedule required engineering review, mold and core preparation, casting planning, production, cleaning, and inspection activities to be coordinated as one connected workflow. Reviewing the critical internal geometry early helped reduce delays between manufacturing stages.
- 01
Engineering and Geometry Review
Review the available component data and identify critical internal features.
- 02
Mold and Core Planning
Plan how the external form, internal passages, and enclosed cavities will be produced.
- 03
Production Preparation
Prepare the required mold, cores, material, and casting plan.
- 04
Cast Iron Pouring
Produce the cast iron component according to the approved manufacturing plan.
- 05
Cleaning and Inspection
Clean the casting and review the accessible external and internal features.
- 06
Project Completion
Complete the agreed project scope within the confirmed schedule.
One Complex Pump Housing. Two-Week Lead Time.
This completed cast iron pump casing demonstrates that a short manufacturing schedule can be achieved for a component with complex internal geometry when engineering, mold preparation, casting, and inspection are coordinated from the beginning.
| Component | Pump Casing Housing |
|---|---|
| Casting Material | Cast Iron |
| Project Lead Time | 2 Weeks |
| Primary Challenge | Complex internal passages and core geometry |
| Project Type | Custom Casting Case Study |
This result applies to the project shown on this page and is not a standard lead-time guarantee for every casting.
