3D Sand Printing for Closed Impeller Casting
Digital production of complex sand molds and internal cores for a Nickel Aluminum Bronze pump impeller.
SPEED 3D MOLD uses digital engineering and 3D sand printing to produce sand molds and internal cores directly from prepared casting data.
The real project shown on this page is a 3D-printed sand mold and core system for a closed pump impeller specified in Nickel Aluminum Bronze. The internal cores form the enclosed flow passages between the impeller blades and shrouds.
After the digital mold system is prepared and produced by SPEED 3D MOLD, metal casting is carried out by CHAOPHAYA FOUNDRY according to the confirmed project and foundry requirements.
Why Closed Impellers Require Complex Internal Cores

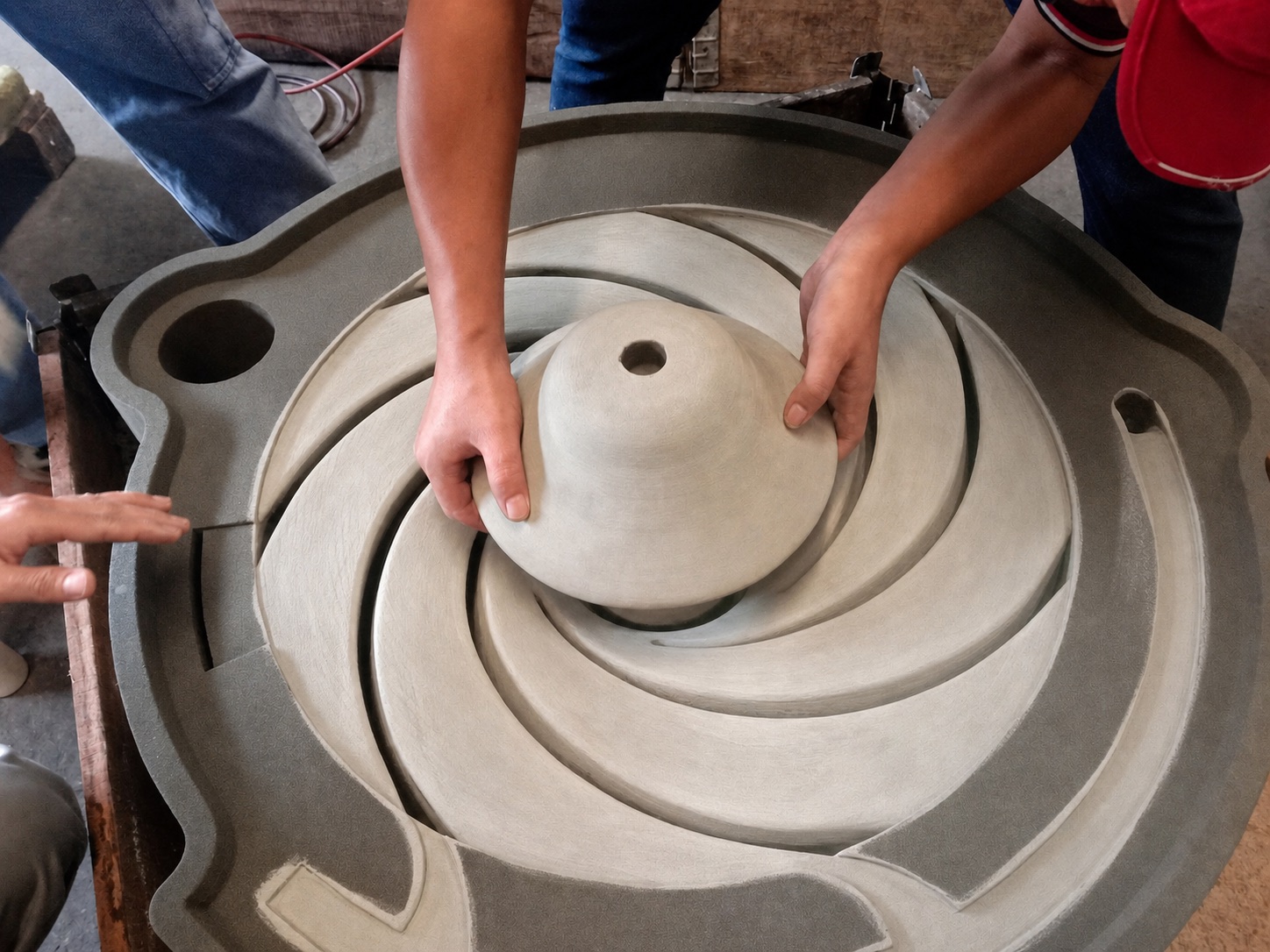

A closed impeller contains internal flow passages enclosed between its front and rear shrouds. These passages guide fluid through the finished pump component, but their enclosed geometry also makes the casting mold more complex.
Sand cores are used to create these internal cavities during casting. For the project shown here, SPEED 3D MOLD produced the internal core geometry directly from prepared digital data using 3D sand printing.
This approach allows curved and interconnected core geometry to be produced without first manufacturing a conventional physical core box. After printing, the mold and core sections must still be cleaned, inspected, fitted, and assembled before they can be transferred to the foundry stage.
From Digital Geometry to a 3D-Printed Sand Mold
A structured engineering workflow, from geometry review to foundry casting.
Component and Application Review
The process may begin with an engineering drawing, an existing 3D model, scan data, or information recovered from an existing component. SPEED 3D MOLD reviews the available geometry, specified material, internal passages, machining requirements, application information, quantity, and inspection requirements before preparing the mold-production data.
Digital Mold and Core Preparation
The component geometry is prepared for the casting process. The review may include the casting orientation, parting arrangement, internal core geometry, core positioning, machining allowance, and the proposed gating and feeding system. The final preparation depends on the component, alloy, casting process, and project requirements.
Casting Simulation
Where required, SolidCast casting simulation can support the engineering review before the mold arrangement is released. Simulation may be used to evaluate the proposed mold filling, temperature distribution, solidification behavior, and areas that may require additional engineering attention. Simulation is a predictive engineering tool. It does not guarantee that every casting defect will be eliminated.
3D Sand Printing
SPEED 3D MOLD prints the sand mold and core sections directly from the prepared digital data. Because the mold is produced from digital geometry, a conventional wooden or metal pattern is not required for the printed mold-production stage. This can be useful for complex internal geometry, replacement components, custom projects, and low-volume engineered castings.
Cleaning and Inspection
After printing, loose sand is removed from the mold and core sections. The visible surfaces, internal passages, locating features, and core interfaces are reviewed before assembly. 3D sand printing produces the mold geometry, but careful cleaning, handling, inspection, and assembly remain necessary parts of the process.
Core Fitting and Mold Assembly
The separate cores and mold sections are positioned and fitted together according to the prepared arrangement. Core alignment is important because the assembled core system determines the internal passages of the finished closed impeller.
Foundry Casting Production

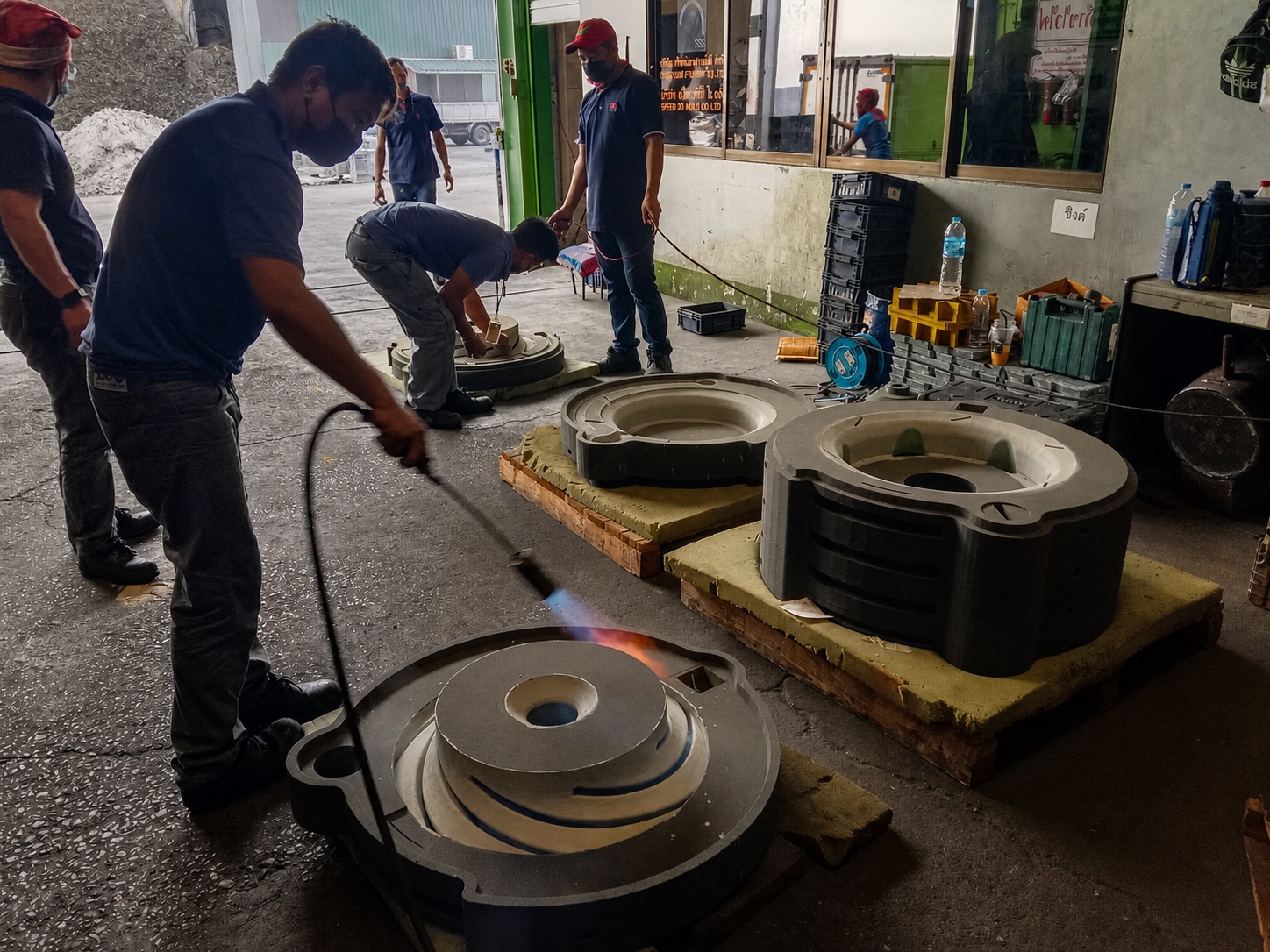

After the mold system has been prepared and reviewed, it proceeds to CHAOPHAYA FOUNDRY for the casting stage. CHAOPHAYA FOUNDRY performs the applicable mold preparation, Nickel Aluminum Bronze melting, pouring, casting operations, and foundry quality controls according to the project requirements. Final casting acceptance remains subject to the agreed specifications, inspection requirements, and quality plan.

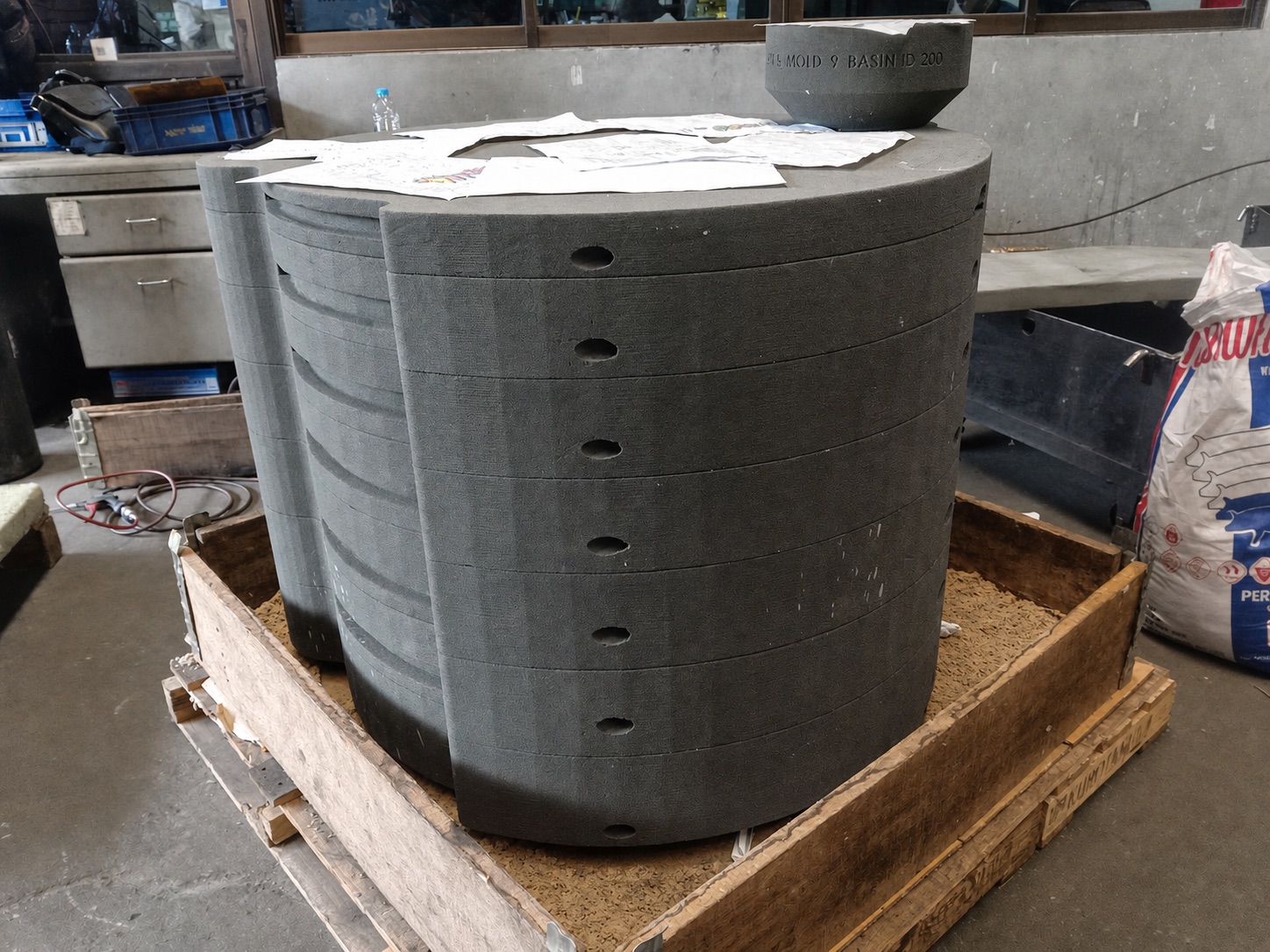

Patternless Mold Production for Replacement Impellers
Replacement impeller projects may begin without the original pattern or complete production data. The original tooling may be unavailable, damaged, obsolete, or impractical to reproduce for a limited production quantity.
Depending on the available information, SPEED 3D MOLD may review a project using:
- An existing 3D model
- A 2D engineering drawing
- A worn or damaged component
- Dimensional measurements
- 3D scan data
- Reverse-engineered geometry
- Material and application requirements
- Photographs and technical records
A scanned model should not automatically be treated as casting-ready geometry. Wear, damage, machining allowance, internal geometry, casting behavior, and the intended operating conditions must be reviewed before mold-production data is released.
Why 3D Sand Printing Fits Complex Impeller Projects
Capabilities that align with the needs of enclosed, geometry-heavy castings.
Complex Internal Passages
3D-printed sand cores can produce curved, enclosed, and interconnected passages that may otherwise require complicated conventional core boxes or multiple core sections.
No Conventional Pattern for the Printed Mold
The sand mold and cores are produced from prepared digital data, removing the need to manufacture a conventional physical pattern before the printed mold is made.
Suitable for Project-Based Production
The process can be considered for custom components, replacement castings, engineering trials, and low-volume industrial parts where conventional tooling may not be practical. Suitability must be evaluated for each project.
Supports Digital Design Revisions
Because the mold-production data is digital, the geometry can be reviewed and revised when engineering evaluation identifies a required adjustment. Any revision must still be checked before the mold is printed and released for casting.
Connection with Casting Simulation
The proposed casting orientation, gating, feeding system, mold filling, temperature distribution, and solidification behavior can be reviewed through SolidCast simulation before the final mold arrangement is released.
Nickel Aluminum Bronze Closed Impeller Project

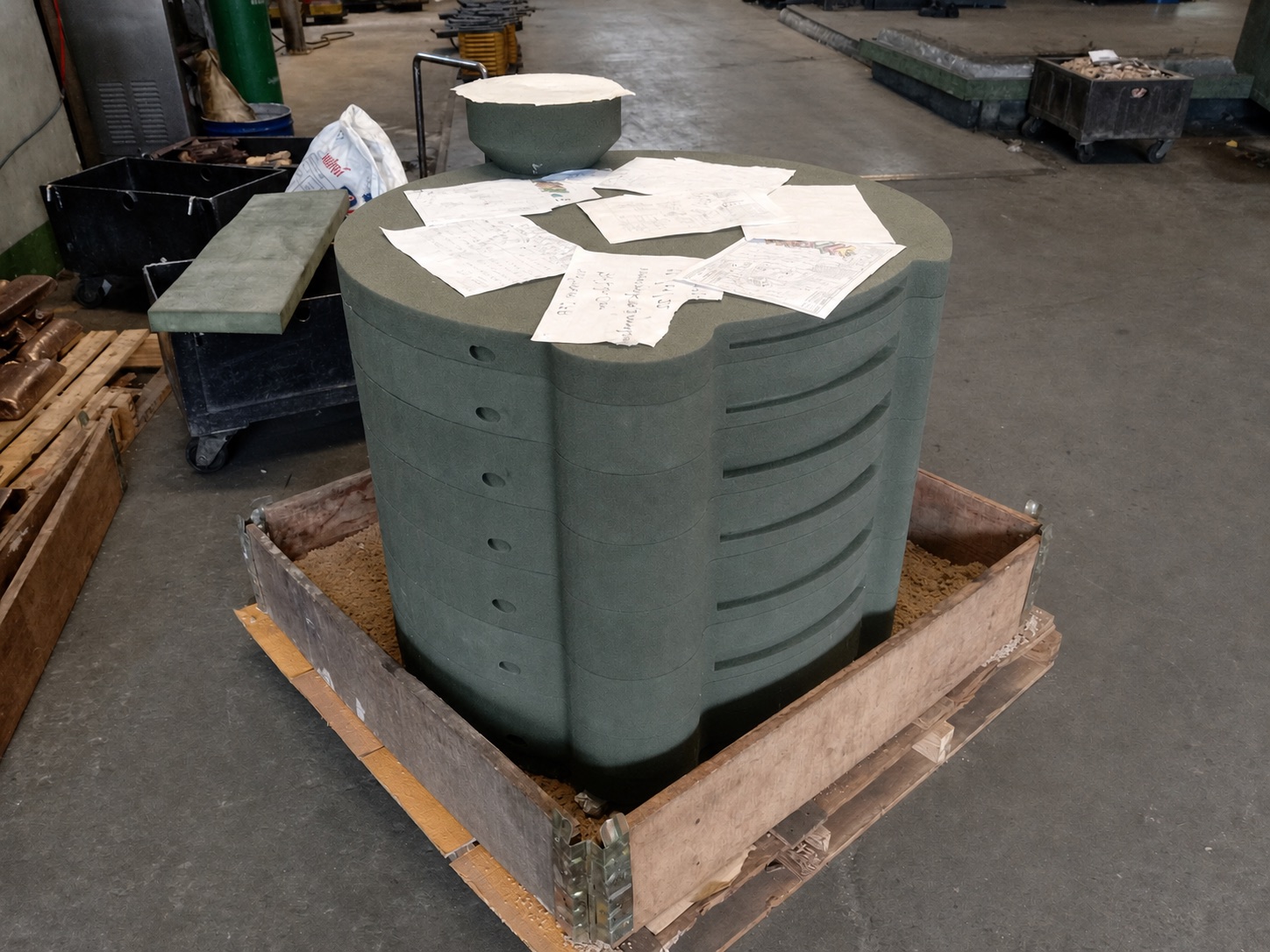

The mold and cores shown on this page were prepared for a closed impeller specified in Nickel Aluminum Bronze.
Nickel Aluminum Bronze is used for selected pump, marine, and industrial components when this alloy family is required by the drawing, application, service environment, or customer specification.
The suitability of the material must be evaluated using the exact alloy grade, operating conditions, applicable specification, mechanical requirements, corrosion conditions, and inspection requirements for each project.
SPEED 3D MOLD can review the mold and core requirements for closed impellers and other complex cast components. The metal casting stage is carried out by CHAOPHAYA FOUNDRY.
From Digital Mold Production to Metal Casting
SPEED 3D MOLD manages the digital and mold-production workflow. This may include geometry review, reverse engineering, SolidCast casting simulation, digital mold and core preparation, and the production of 3D-printed sand molds and cores.
Once the mold system has been prepared and reviewed, casting production is carried out by CHAOPHAYA FOUNDRY. The foundry performs the applicable mold preparation, Nickel Aluminum Bronze melting, pouring, casting operations, and foundry quality controls according to the project requirements.
This coordinated workflow connects digital mold manufacturing with practical foundry production while keeping each company's role clearly defined.
- 1Drawing, 3D model, scan data, or existing component
- 2Geometry and casting review by SPEED 3D MOLD
- 3SolidCast casting simulation where required
- 4Digital mold and core preparation
- 53D sand printing by SPEED 3D MOLD
- 6Cleaning, inspection, fitting, and mold assembly
- 7Metal casting by CHAOPHAYA FOUNDRY
- 8Inspection according to the project requirements
Information Needed to Review Your Impeller Project
To review whether 3D sand printing and the proposed casting route are suitable for your project, please provide as much of the following information as available:
SPEED 3D MOLD will review the available geometry and mold-production requirements. Where foundry input is required, the casting requirements can be coordinated with CHAOPHAYA FOUNDRY.
3D Sand Printing and Closed Impeller FAQ
Discuss Your Closed Impeller Project
Send SPEED 3D MOLD your drawing, 3D model, scan data, or available component information. Our team will review the geometry, internal core requirements, Nickel Aluminum Bronze specification, and proposed 3D sand mold production route. The foundry casting requirements can then be coordinated with CHAOPHAYA FOUNDRY.
