Casting Simulation Services in Thailand
Review mold filling, solidification, thermal behaviour, and feeding strategy before mold production through engineering simulation using SolidCast. Results support engineering review of gating, riser design, casting orientation and process planning before manufacturing.
What Casting Simulation Can Evaluate Before a Mold Is Produced
Casting simulation models how molten metal is expected to fill a mold and solidify, so that gating, feeding and casting orientation can be reviewed before any mold is produced. A model requires casting geometry, a proposed gating and riser arrangement, the alloy and mold definition, and pouring and initial temperature conditions. From those inputs, engineers can review filling behavior, solidification sequence, thermal distribution and regions that may require further engineering consideration. Results are indications produced from the assumptions configured in the model, not measurements of a real casting, so they require interpretation alongside geometry, alloy data, mold conditions and production controls. Where a configuration is accepted, it informs the mold design released to 3D sand printing and casting production.
When Is Casting Simulation Useful?
Simulation is not required on every project. This guide outlines situations where a simulation review commonly supports an engineering decision, and where it may not be necessary.
| Situation | Recommended engineering approach | Reason |
|---|---|---|
| New casting geometry with no production history | Simulation review before mold production | A simulation review may help establish an initial gating and feeding strategy where no process precedent exists. |
| Complex internal geometry or thin passages | Filling review — 3D Sand Printing | Filling behavior can be reviewed to identify areas that may require additional process consideration. |
| Large variation in section thickness | Solidification and feeding review | Solidification behavior can be reviewed for potential thermal concentration areas before riser sizing is fixed. |
| Prototype casting before committing to tooling or molds | Simulation as part of process review — Prototype Casting | Process assumptions can be reviewed before mold production, where the geometry or alloy is unfamiliar. |
| Replacement casting from reconstructed geometry | Simulation where manufacturing conditions differ from the original — Replacement Casting | Reconstructed geometry or changed process conditions may require the casting route to be reviewed rather than assumed. |
| Existing component already in stable production | Simulation may not be necessary — Production Casting | Where geometry, alloy, mold process and production conditions are unchanged, an existing proven route may be retained. |
What Casting Simulation Can Review
Using SolidCast, engineers review the following behaviors within the configured model. Simulation indicates areas that may require engineering review; it does not detect defects in a physical casting.
Mold Filling
Review how molten metal is modelled entering the mold and progressing through gating, runners and ingates for the configured system.
Flow Behavior
Observe modelled flow paths, last-filled regions and areas where venting or ingate arrangement may require engineering review.
Solidification Behavior
Study how the casting is modelled to solidify over time, including sections that remain liquid later than surrounding areas.
Temperature Distribution
Review modelled thermal behavior across casting, mold and feeders during pouring and cooling.
Feeding and Riser Strategy
Assess the gating layout, runner and ingate design, and riser placement and size against the modelled solidification sequence.
Areas Requiring Engineering Review
Identify regions — such as thermal concentrations or late-solidifying volumes — that may require gating, feeding, orientation or process reconsideration.
From Casting Setup to Risk Review
This project sequence shows how SolidCast is used to review casting geometry, mold filling, progressive solidification, and potential shrinkage and porosity risk areas before production.
Simulation results support engineering review and process planning. They do not guarantee casting results on their own, and the interpretation must be considered together with geometry, alloy data, mold conditions, process parameters, and production controls.

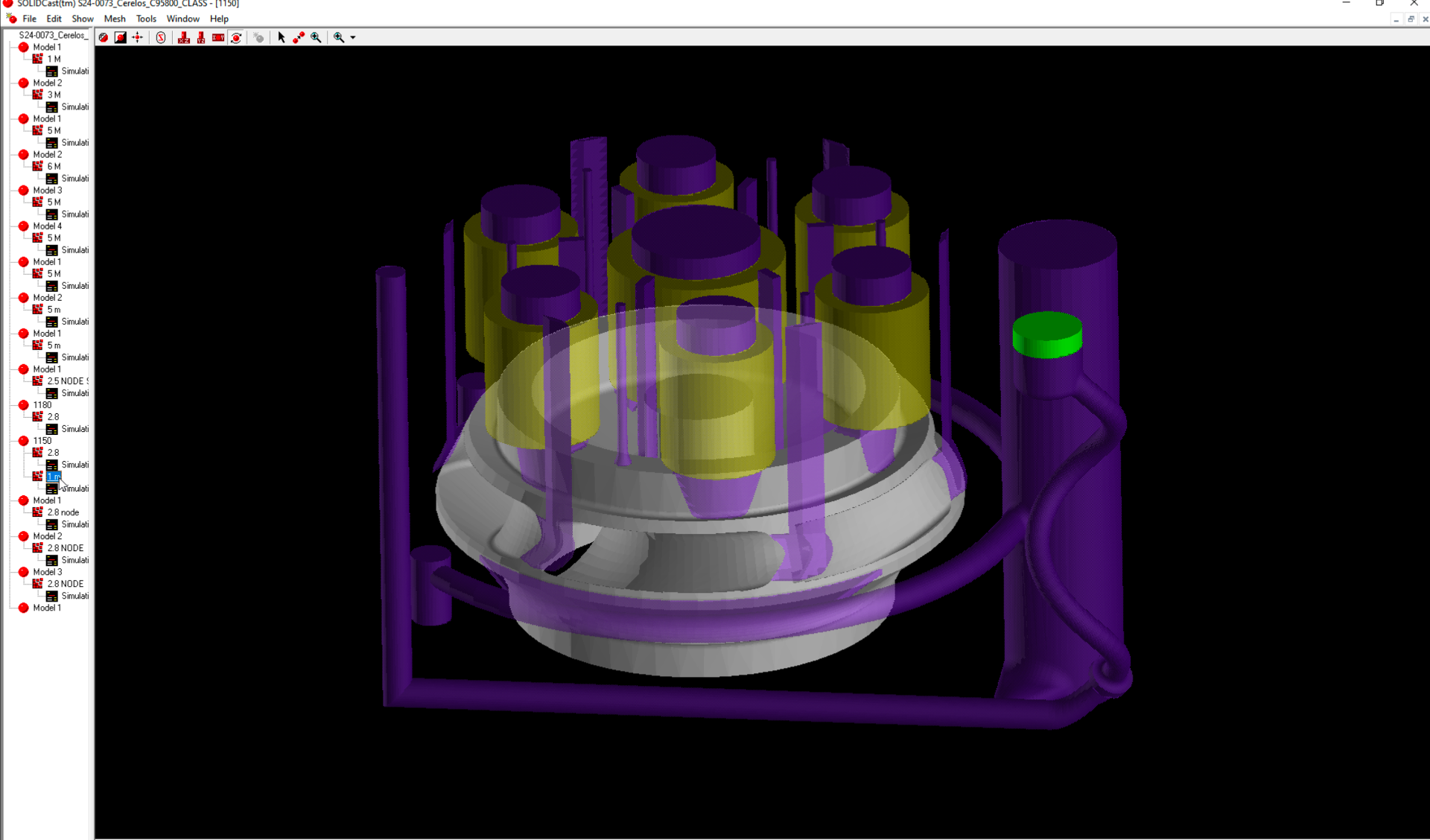

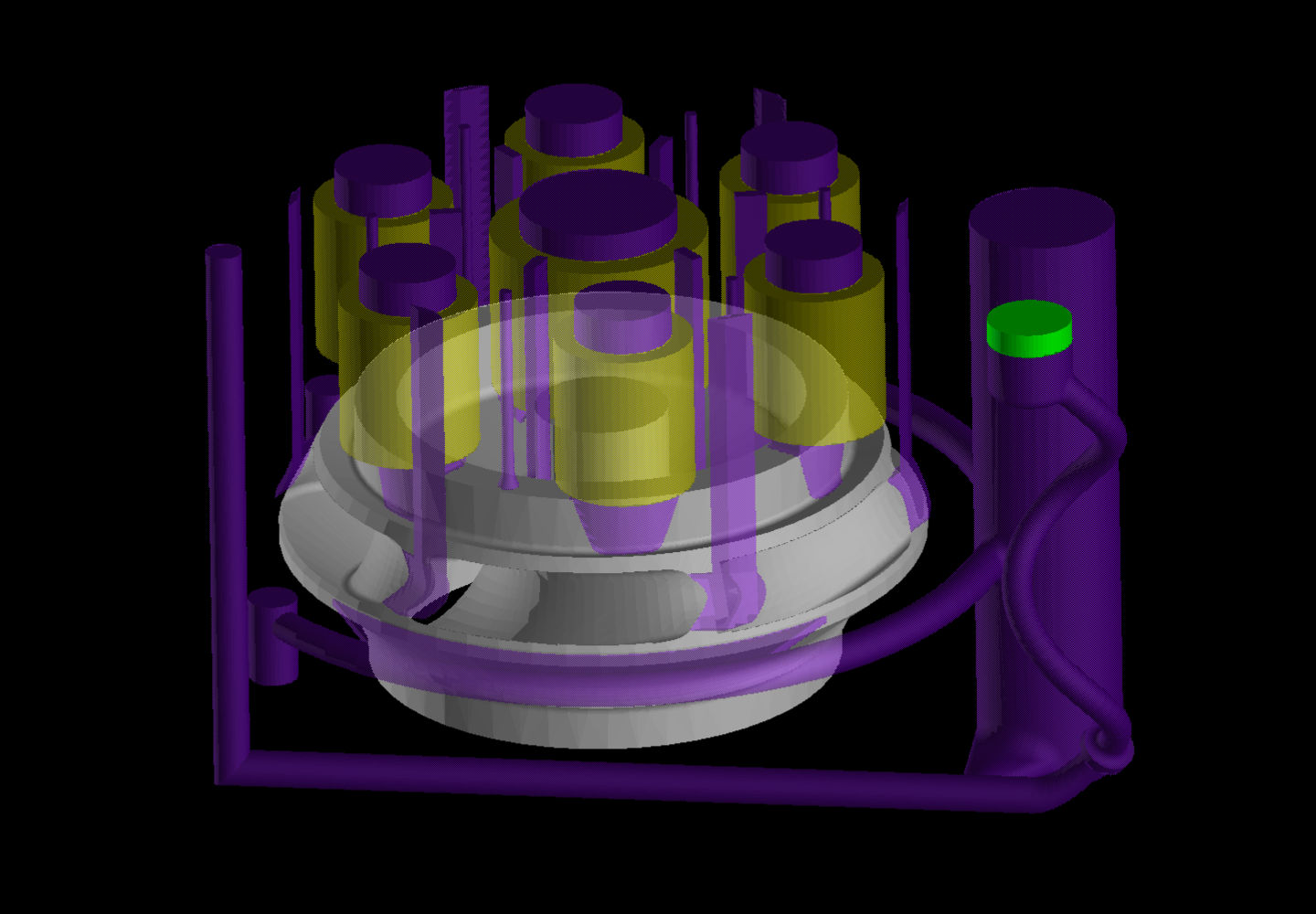

Model and Gating Setup

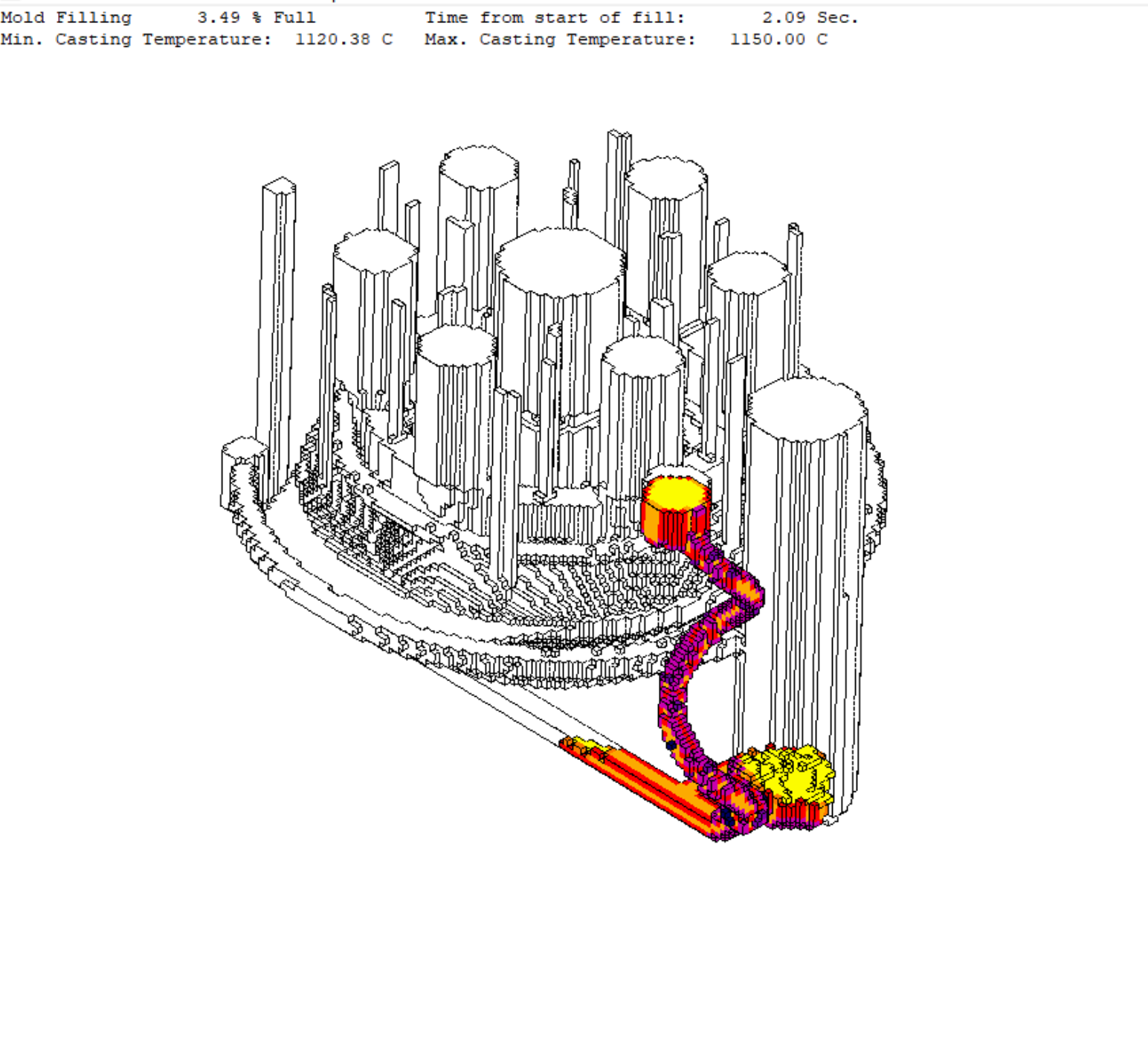

Mold Filling Analysis

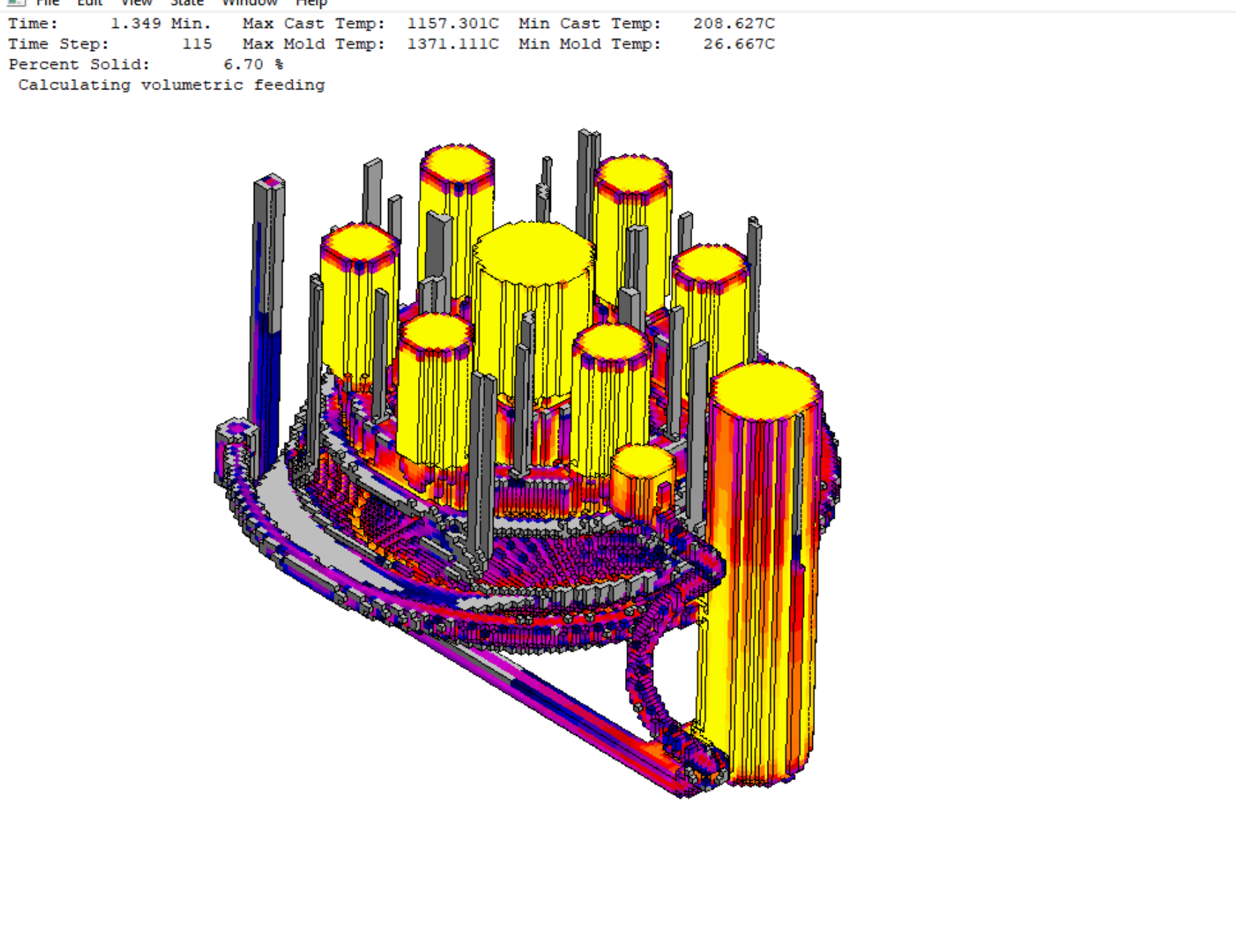

Early Solidification

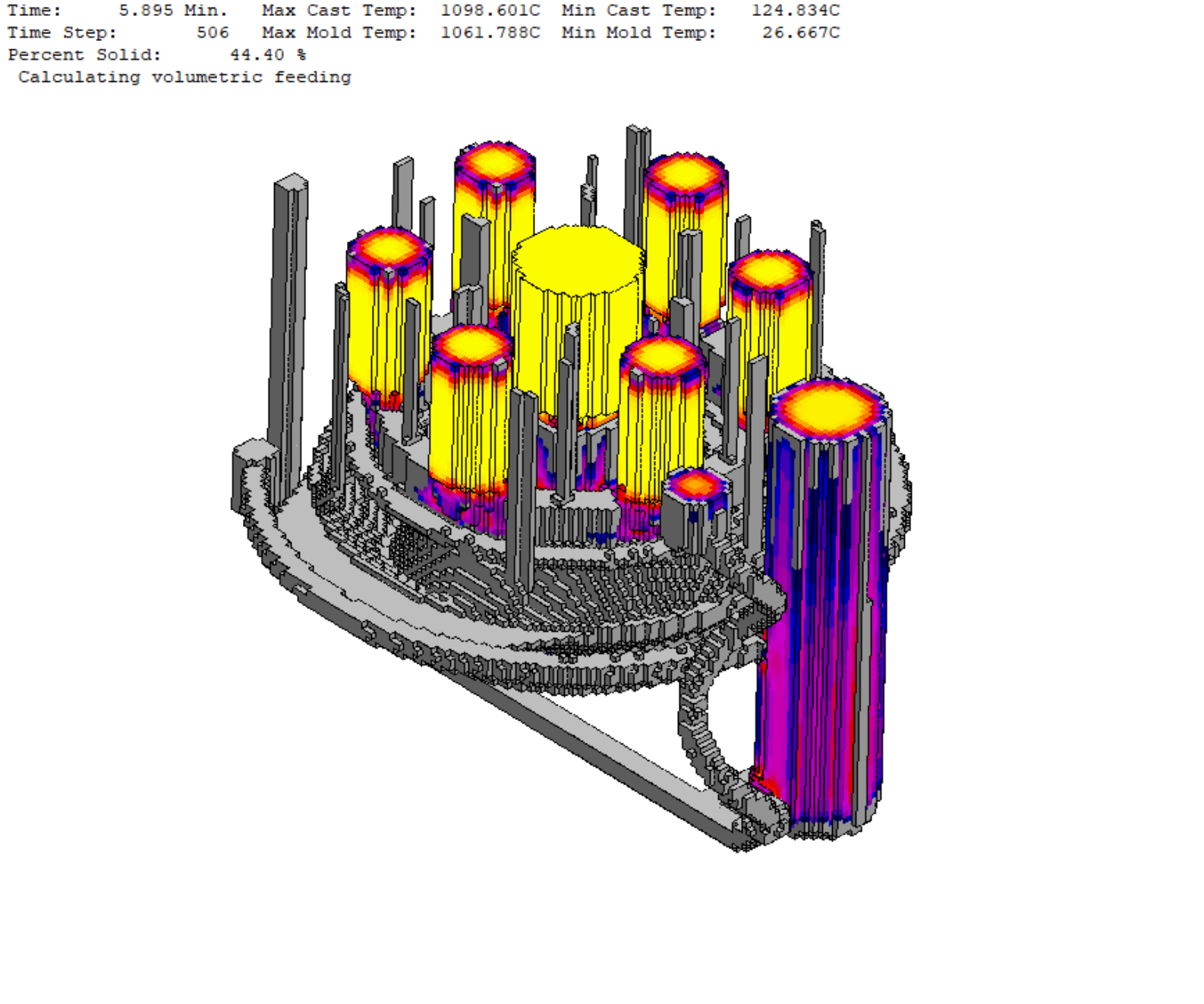

Progressive Solidification

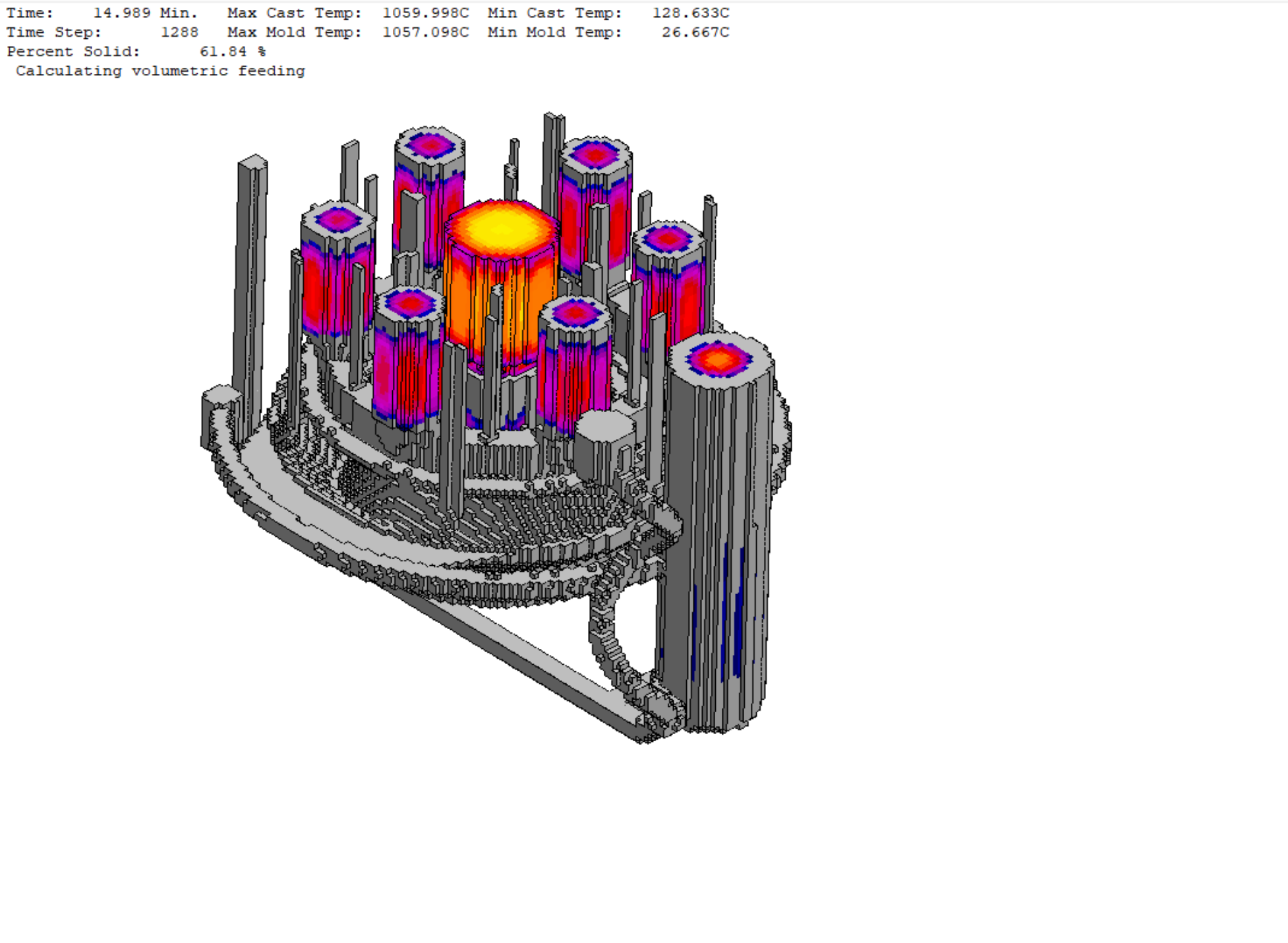

Continued Solidification

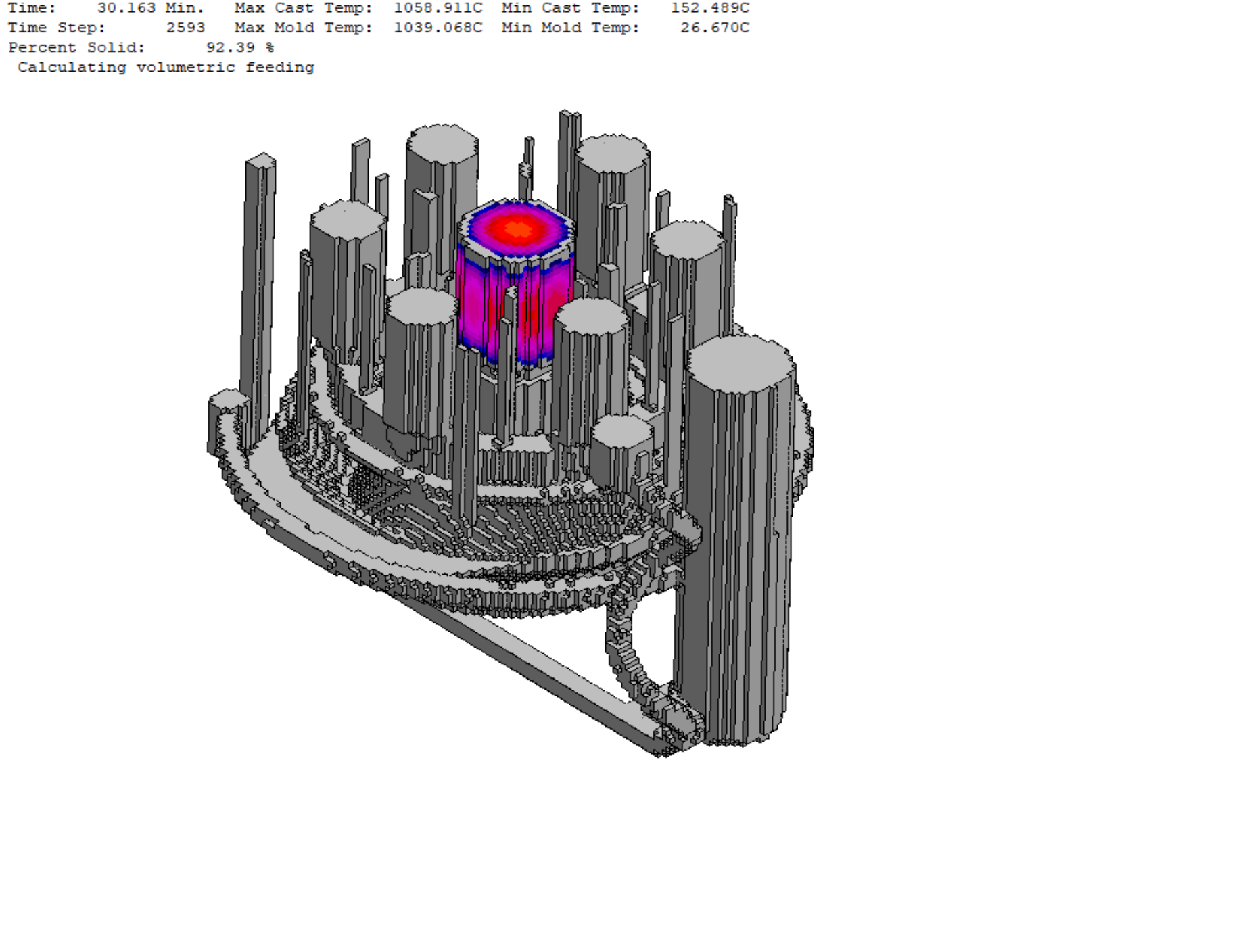

Near-Final Solidification

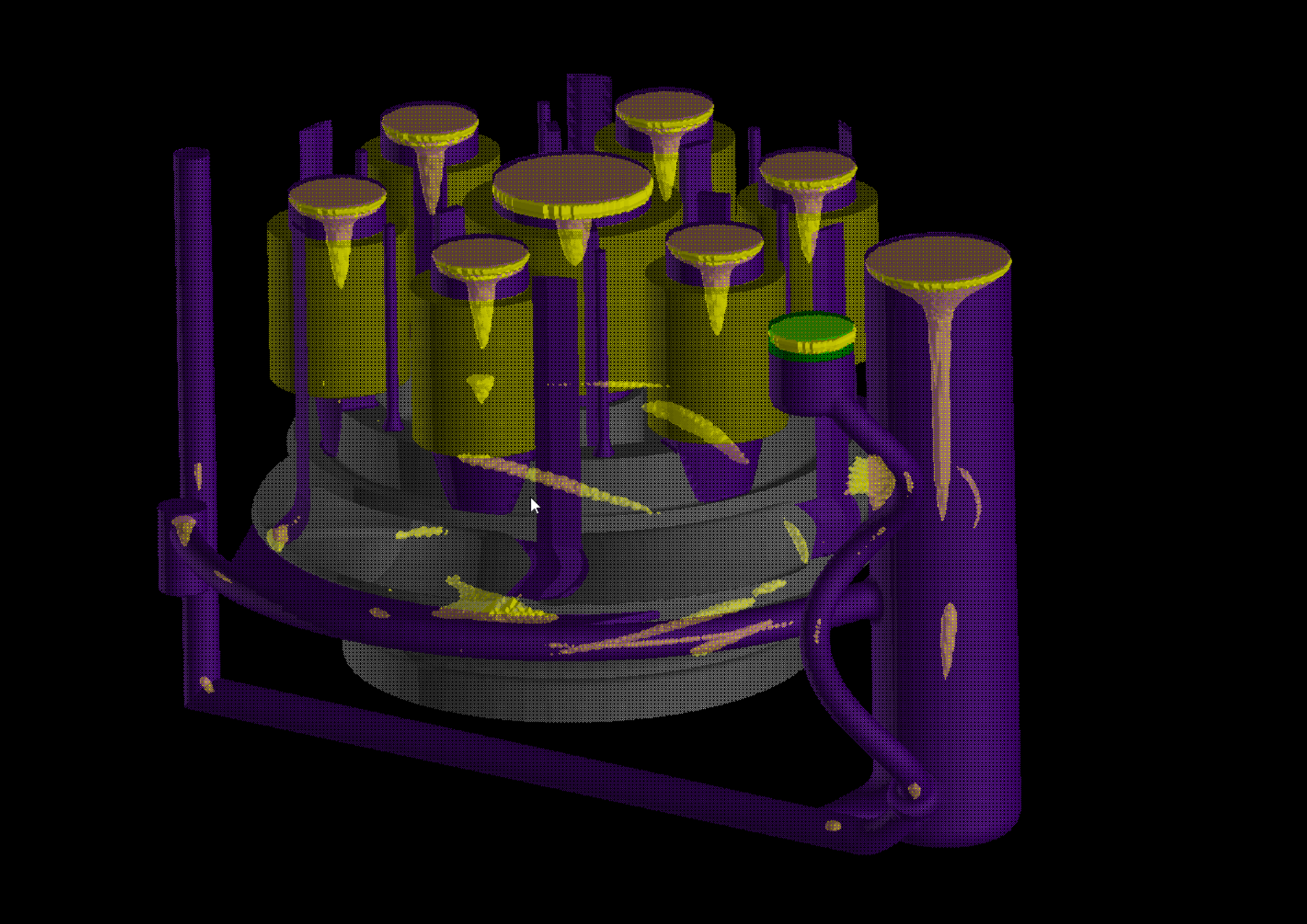

Shrinkage and Porosity Risk Review
Materials Supported
Casting simulation is available for a range of castable metals used in industrial applications.
- Copper alloys
- Bronze
- Steel
- Stainless steel
- Other castable metals
For a full list of alloys we cast, see our materials overview.
Simulation Inputs and Assumptions
A simulation result is only as representative as the inputs it was built from. The following information defines the model, and every result must be read in relation to it.
- Casting geometry
3D CAD of the component, or geometry reconstructed from an existing part.
- Gating and riser geometry
The proposed sprue, runner, ingate and feeder arrangement to be evaluated.
- Alloy / material definition
The casting alloy and its thermal and solidification properties as configured in the model.
- Mold material
The mold and core medium used, which affects modelled heat removal.
- Pouring and initial conditions
Pouring approach and initial metal and mold temperatures applied in the setup.
- Process assumptions and boundary conditions
The simplifications applied to represent the real process within the model.
Where an input is unknown, an engineering assumption is recorded with the setup so that the review remains traceable and the result is interpreted against the conditions actually modelled.
Engineering Workflow
Each stage has a defined input, engineering activity and output, connecting CAD to an approved mold route.
Casting Geometry and Engineering Input
- Input
- 3D CAD or reconstructed geometry, alloy, size and application requirements.
- Activity
- Review the geometry for castability and confirm what the project needs to establish.
- Output
- Agreed scope for the simulation review.
Initial Gating and Feeding Concept
- Input
- Reviewed geometry and casting requirements.
- Activity
- Propose casting orientation, sprue, runners, ingates and feeders as a starting configuration.
- Output
- An initial casting system to be evaluated.
Simulation Setup
- Input
- Casting system geometry, alloy and mold definition.
- Activity
- Configure material, mold, pouring and boundary conditions in SolidCast, recording the assumptions used.
- Output
- A documented simulation model.
Filling Review
- Input
- Completed filling analysis.
- Activity
- Review how the metal is modelled to enter and progress through the system, including last-filled regions.
- Output
- Filling observations for engineering interpretation.
Solidification Review
- Input
- Completed solidification and thermal results.
- Activity
- Review solidification sequence, thermal concentrations and feeding effectiveness within the modelled system.
- Output
- Areas identified as requiring engineering review.
Engineering Adjustment
- Input
- Filling and solidification observations.
- Activity
- Adjust gating, feeding, orientation or process assumptions and re-run to compare alternatives where useful.
- Output
- A revised casting system with the reasoning recorded.
Approved Mold and Casting Route
- Input
- The configuration accepted after engineering review.
- Activity
- Release the mold design to 3D sand printing and confirm the inspection requirements for the actual casting.
- Output
- Mold production route and verification plan.
Related Engineering Technologies
Casting simulation is most useful when it is connected to the engineering route around it — the geometry that feeds the model, and the mold and casting process that follow the review.
Prototype Casting
Simulation is commonly used before a first casting, where no process precedent exists for the geometry.
Replacement Casting
When the original process is unknown, simulation supports review of a new gating and feeding route.
Reverse Engineering
Provides the reconstructed CAD geometry that a simulation model requires as its primary input.
3D Sand Printing
Produces the mold and cores for the reviewed casting system, including geometry that conventional tooling limits.
Patternless Technology
Allows a revised gating or feeding arrangement to be produced directly from CAD, without new pattern tooling.
Production Casting
The reviewed configuration is carried into pouring, finishing and inspection under production conditions.
Related External Coverage
Independent industry articles discussing related Speed3DMold technologies and applications.
View All RecognitionTechnology Representation
ExOne Sales Representative in Thailand
Speed 3D Mold Co., Ltd. is listed by ExOne as a sales representative in Thailand, supporting local coordination for industrial sand 3D-printing solutions.
Verify our listing on ExOne’s official global support network.
View Official ExOne ListingMEMBERS & SOCIETIES
Simulation Is Not Physical Validation
Simulation supports engineering decisions before mold production, but the result remains dependent on the model assumptions and process inputs used. It does not eliminate defects, confirm dimensional conformity, or guarantee a specific outcome. Final casting acceptance should rely on the inspection and verification requirements defined for the actual component.
Key Takeaways
- Casting simulation is an engineering decision-support tool, not a guarantee of casting outcome.
- Results depend on the geometry, alloy, mold and process assumptions configured in the model.
- Filling and solidification behavior can be reviewed before a mold is produced.
- Simulation findings may lead to changes in gating, risering, orientation or process approach.
- Physical inspection and verification of the actual casting remain necessary according to project requirements.
Frequently Asked Questions
Request a Casting Simulation Review
Send your CAD or drawing, the intended casting material, the casting requirements, and any known production issue. We will review the geometry, propose a simulation setup and return engineering feedback for your project.
Not at the simulation stage yet? Start with prototype casting.
