Using 3D Printed Moulds in Producing Cast Replacement Parts and Propellers
At the 74th World Foundry Congress, Speed 3D Mold presented how 3D-printed sand moulds can support the production of replacement castings and propellers without relying on conventional pattern tooling. The presentation brought together selected work involving replacement components, propellers, spherical feeders and helical sprues.
- Event
- 74th World Foundry Congress
- Location
- Busan, Korea
- Dates
- 16–20 October 2022
- Presented by
- Nattinee Valun-araya, Speed 3D Mold
Presentation Record
- Presentation title
- Using 3D Printed Moulds in Producing Cast Replacement Parts and Propellers
- Authors named in the presentation
- J.T.H. Pearce, N. Valun-araya and O. Chantarasukkasem
- Presenter
- Nattinee Valun-araya, Speed 3D Mold Company, Thailand
- Event
- 74th World Foundry Congress
- Location
- Busan, Korea
- Dates
- 16–20 October 2022
- Meeting format
- Hybrid meeting
- Content type
- Conference Presentation
Presented by Nattinee Valun-araya of Speed 3D Mold at the 74th World Foundry Congress, held in Busan, Korea, 16–20 October 2022. The authors named in the presentation file are J.T.H. Pearce, N. Valun-araya and O. Chantarasukkasem; being named as an author does not mean each author presented at the event.
Presentation Overview
Operators of pumps, marine equipment and older industrial machinery regularly reach a point where a cast component is damaged or worn but the original part is no longer produced, the pattern no longer exists, or the manufacturing data is incomplete. The presentation used this industrial context as its starting point.
The work presented described producing moulds and cores directly by 3D sand printing from digital geometry, removing the pattern-making step from the route to a cast replacement part. Selected examples covered replacement components and propellers, together with feeder and gating geometries that become practical when the mould is printed rather than moulded around a pattern.
This page is an original summary of the presentation prepared for the website. The detailed technical publications linked below remain the authoritative sources for methodology and results.
Topics Presented
Replacement Castings
The presentation covered the production of cast replacement components where the original part is no longer supplied, drawings are incomplete or lead times through conventional pattern making are unacceptable. Moulds were produced directly by 3D sand printing.
Replacement Casting EngineeringPropeller Production
Propeller and impeller work was presented as an application area for 3D-printed sand moulds, including nickel aluminium bronze and aluminium bronze castings recovered without an existing pattern.
Aluminium Bronze Propellers PublicationSpherical Feeders

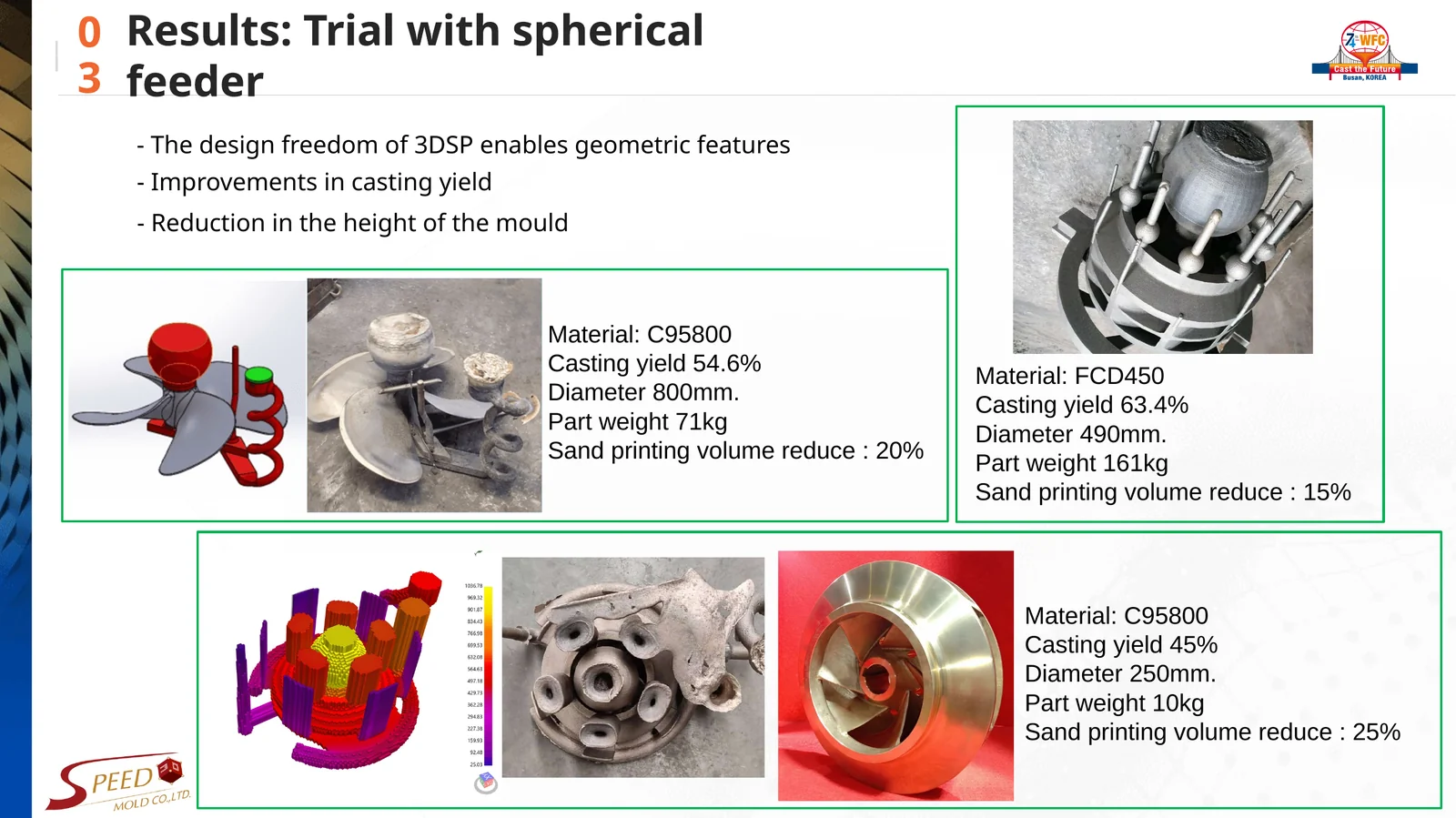

Trials with spherical feeder geometries were presented as an example of feeder shapes that are practical to produce with 3D sand printing, discussed in relation to casting yield and mould height.
Spherical-Shaped Feeders PublicationHelical Sprues

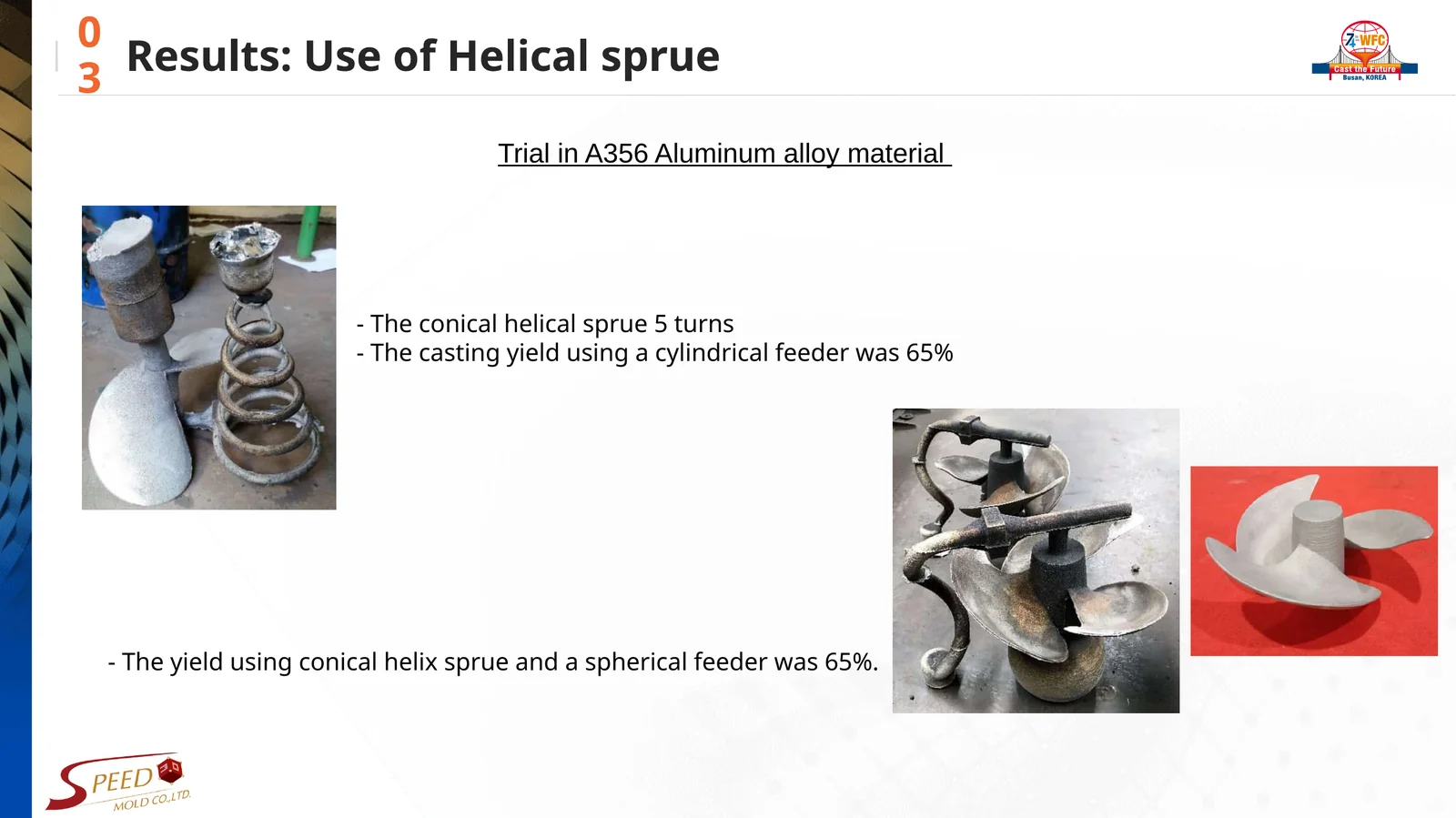

Helical sprue trials were presented as a gating approach enabled by printed moulds, examined in aluminium-alloy and bronze casting work alongside casting simulation.
Helical Sprues PublicationSlide images are taken from Speed 3D Mold's own presentation file and show the company's own project work.
Presentation Evidence
Certificate of Attendance issued to Nattinee Valun-araya of Speed 3D Mold Company for participation in the 74th World Foundry Congress. The certificate confirms attendance and does not itself identify the presentation title.
Presenter status and the presentation title are recorded from Speed 3D Mold's presentation file and confirmed by the company.
The presentation file itself is not published on this website.
Related Technical Publications
The topics summarised above are documented in more detail on the following pages, which remain the authoritative sources.
