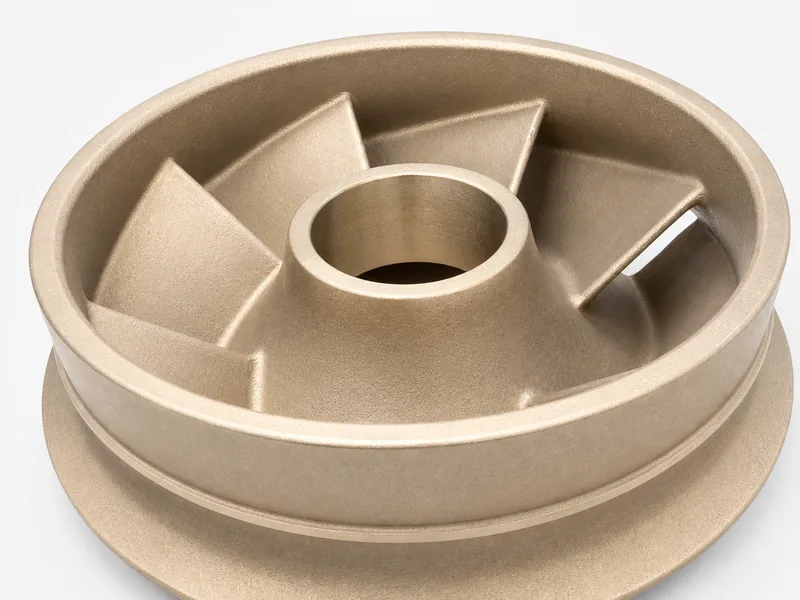

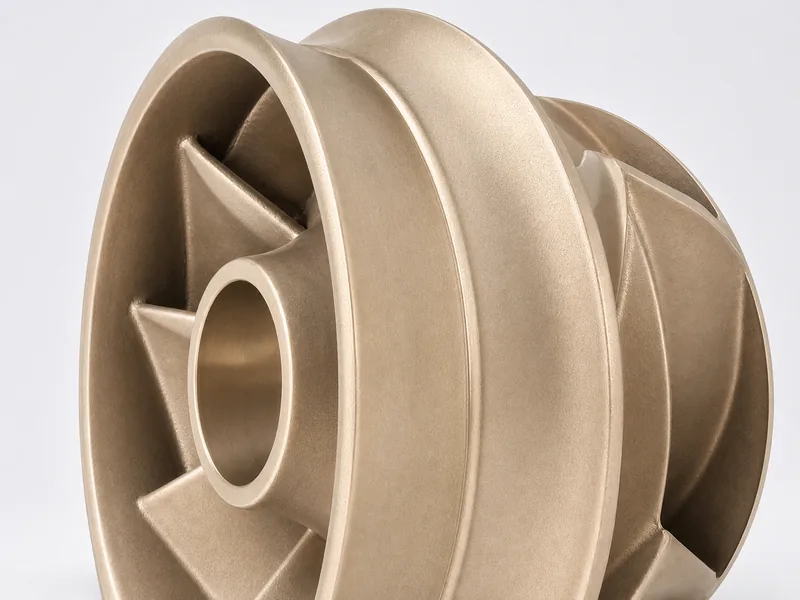

Closed Impeller

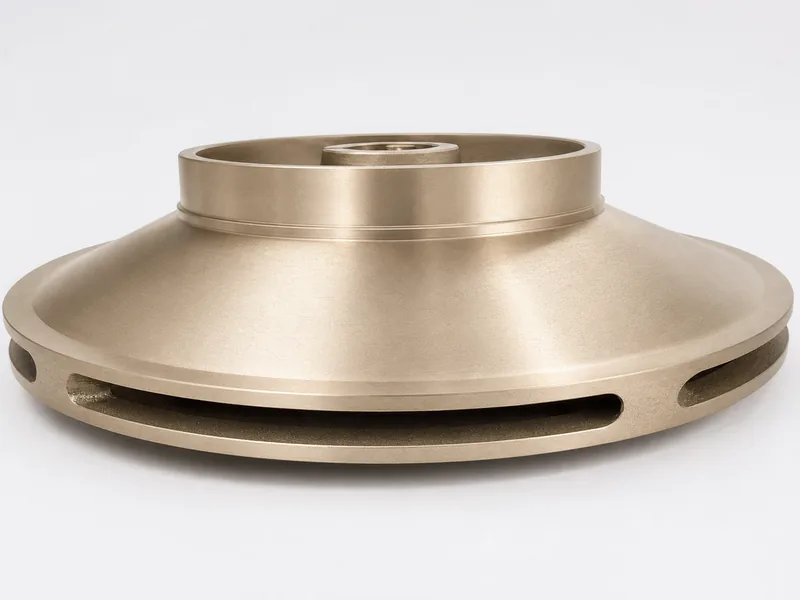

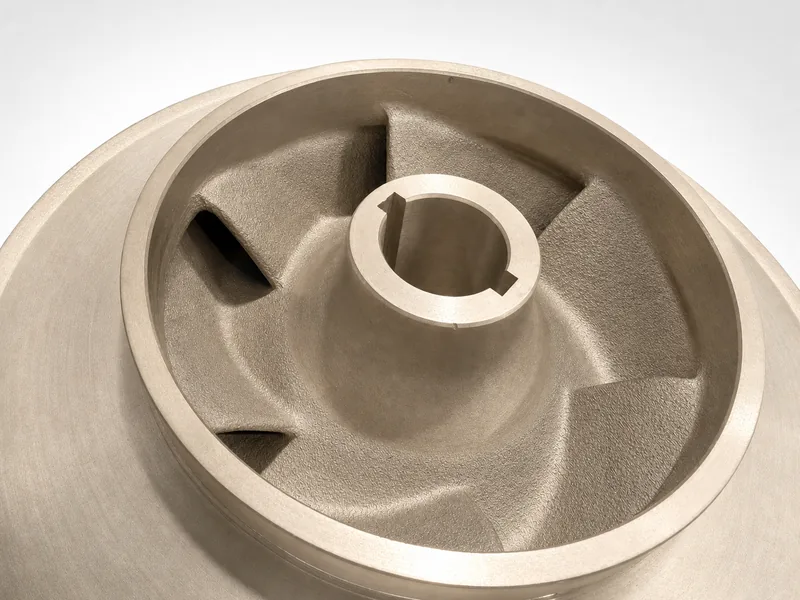

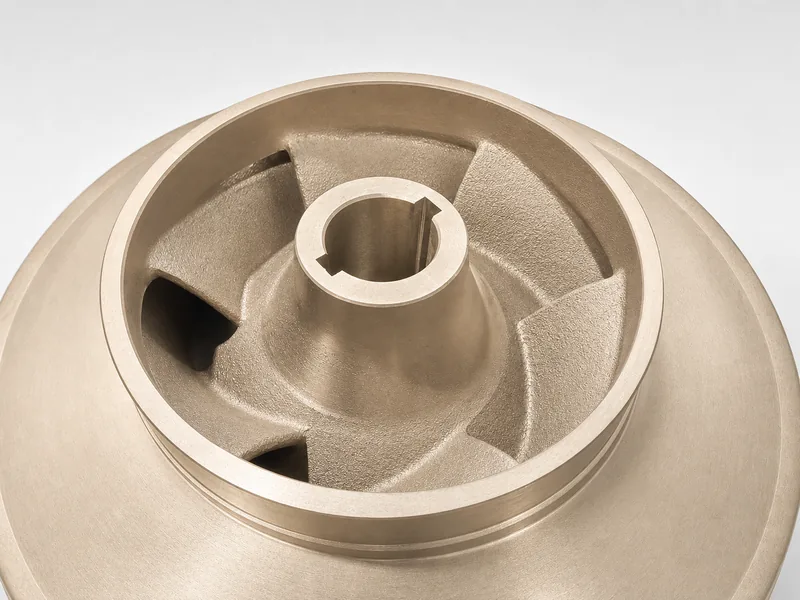

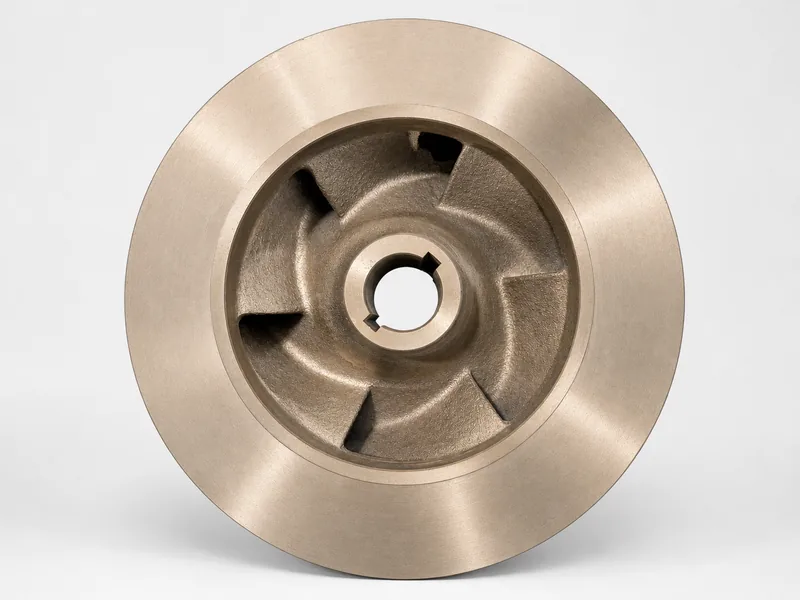

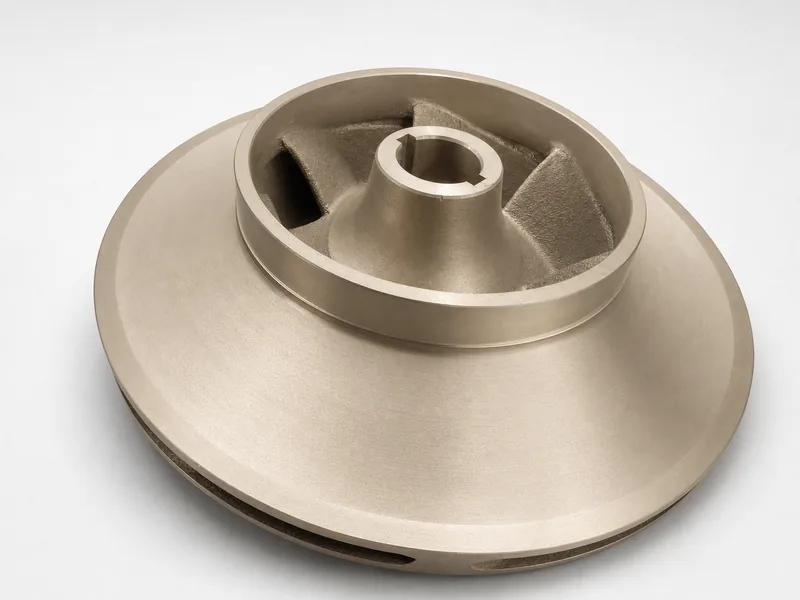

Closed Impeller Example 01
Closed impeller with enclosed internal flow passages, presented from multiple viewing angles.
Pump Impeller Casting and Replacement Manufacturing
Speed3D Mold supports the manufacture and replacement of industrial pump impellers — open and closed, cast in metal — starting from engineering drawings, CAD data, 3D scan data, or an existing physical component.
Depending on the available inputs, the workflow may involve 3D scanning, reverse engineering and CAD reconstruction, casting engineering and simulation, 3D-printed sand moulds and cores, casting, machining coordination, and inspection or verification. Each requirement is reviewed individually before the manufacturing route is defined.
For obsolete or difficult-to-source pump parts, see pump replacement casting engineering.
Open and Closed Impeller Configurations
Closed
Closed Impellers
Closed impellers incorporate enclosed flow passages between the front and rear shrouds. Their internal blade and passage geometry requires careful review during geometry preparation and manufacturing planning.
Examples: Closed Impeller Example 01, 02
Open
Open Impellers
Open impellers have exposed blade geometry, allowing the blade arrangement, curvature, hub, and accessible flow surfaces to be directly observed.
Examples: Open Impeller Example 01, 02
Industrial Pump Impeller Capability
Impeller requirements reach us in different forms: a new design with full data, a repeat casting, or a worn component that has to be reproduced. The following requirement types are supported through the engineering-to-casting workflow.
Open impellers
Exposed blade geometry that can be measured and reviewed directly, including cast open impellers produced from drawings, CAD data or an existing component.
Closed impellers
Shrouded impellers with enclosed internal flow passages, where the passage geometry is formed by sand cores rather than by open mould surfaces.
Complex internal passages
Curved blades and enclosed passages are reviewed during casting engineering, because they determine core design, feeding and access for cleaning and inspection.
Large industrial pump impellers
Documented work includes a vertical pump impeller of 1,270 mm finished diameter and 900 kg cast weight, produced through a one-off printed mould.
Replacement impellers
Where an impeller is worn, damaged or no longer supported, an existing component can be used as the engineering reference for a replacement casting.
Projects starting from drawings or CAD
When drawings or CAD data exist, the geometry is reviewed for castability and prepared directly for casting engineering.
Two Ways an Impeller Project Can Start
Most pump impeller projects begin through one of two broad paths, depending on whether engineering data or a physical reference component is available.
Path A
Engineering data available
- 1Drawing or CAD data supplied
- 2Engineering review of geometry, material and interfaces
- 3Casting engineering: rigging, feeding, simulation where applicable
- 4Mould and core production
- 5Casting
- 6Machining coordination and verification
Path B
Existing component available
- 1Existing physical component or scan data supplied
- 2Geometry capture by 3D scanning or measurement
- 3CAD reconstruction of the component
- 4Engineering review of the reconstructed geometry
- 5Casting engineering and mould/core production
- 6Casting, machining coordination and verification
Not every project follows exactly the same sequence. The final manufacturing route depends on geometry, material, the condition of the reference component, required quantity and the wider project requirements, and is confirmed during engineering review.
Why 3D Sand Printing Is Relevant to Impeller Casting
3D sand printing produces the casting mould and cores — not the metal component. The impeller itself is subsequently cast in metal in that printed mould and core package, then cleaned, machined and inspected.
- Curved, closely spaced blade geometry can be reproduced directly from CAD data.
- Enclosed passages in closed impellers are formed by printed sand cores instead of core boxes.
- Patternless production removes the need to build wooden patterns for a single component.
- Low-volume and replacement requirements, where conventional tooling may not be practical, can be evaluated on this route.
See the moulding process and patternless manufacturing pages for how the moulds and cores are produced.
Impeller Component Examples
Each model below shows one physical component photographed from multiple angles. Click any image to enlarge.

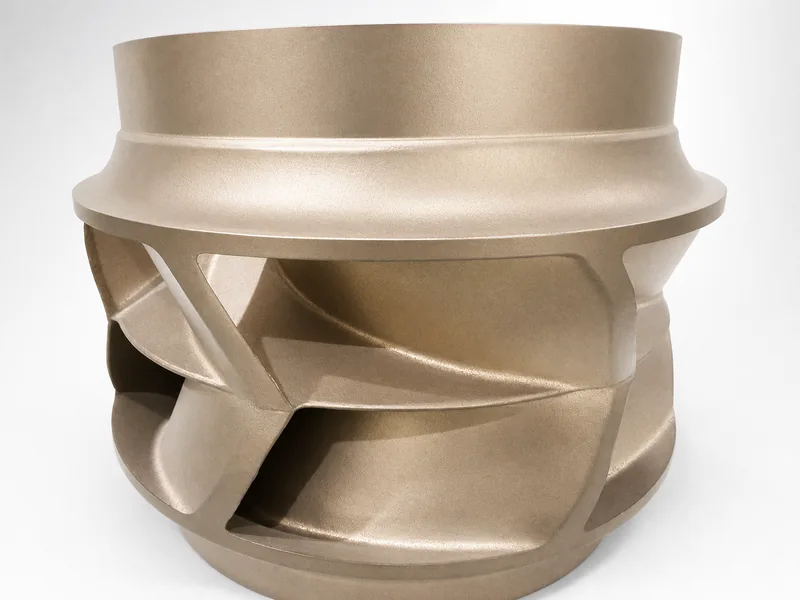

Closed Impeller

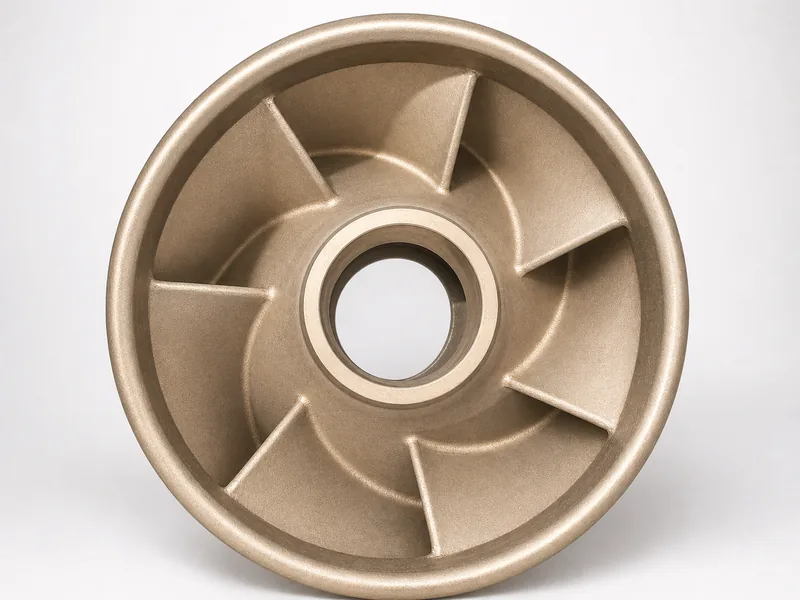

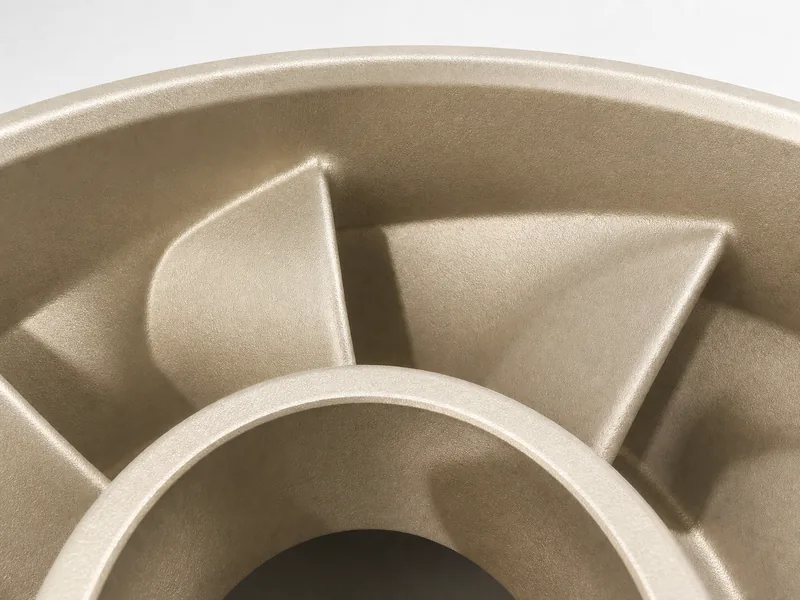

Closed Impeller Example 02
Closed impeller showing its hub, shrouded blade geometry, and enclosed flow passages.

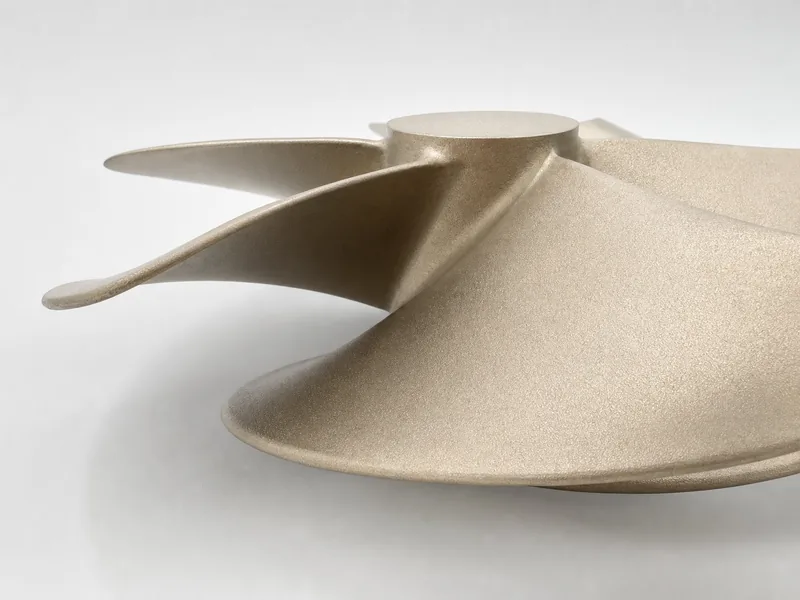

Open Impeller

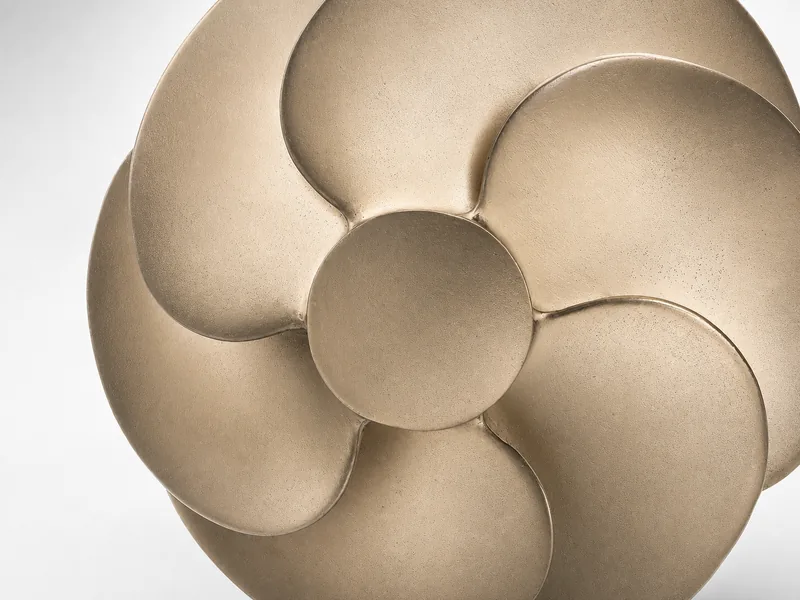

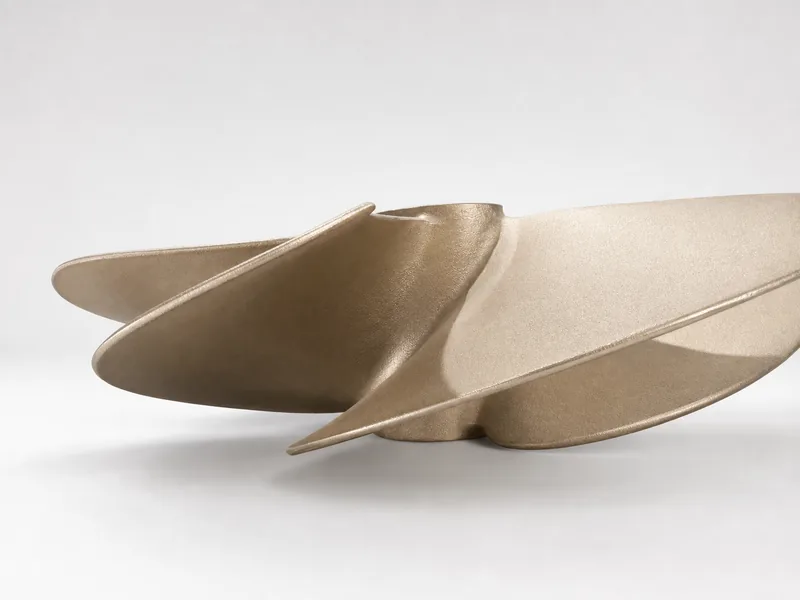

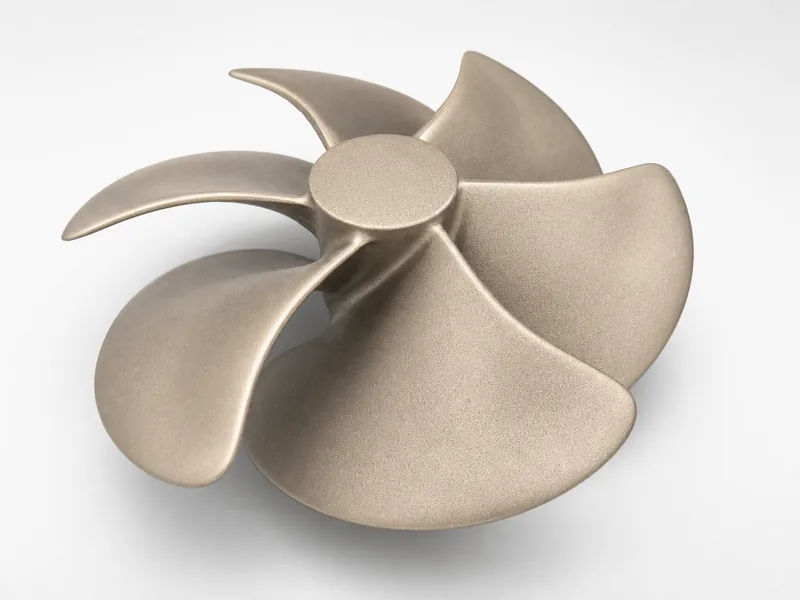

Open Impeller Example 01
Open impeller with exposed blade geometry that can be directly observed.

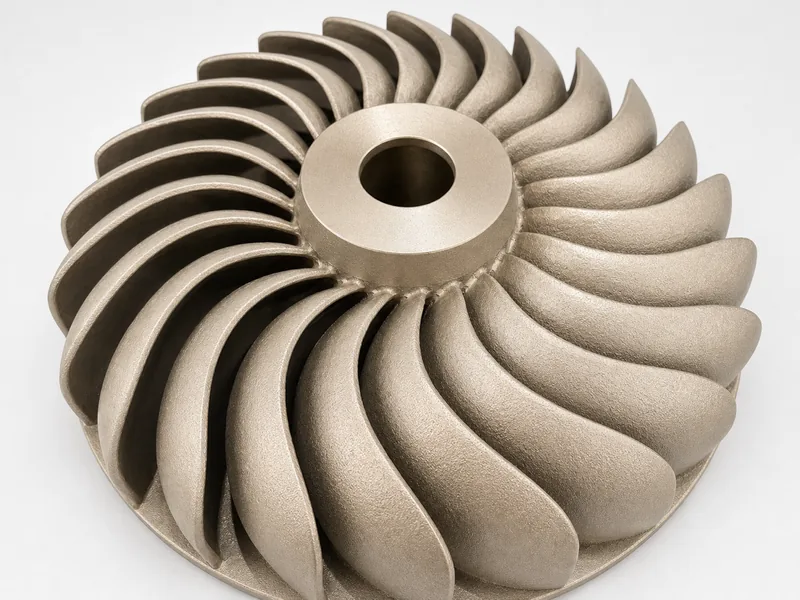

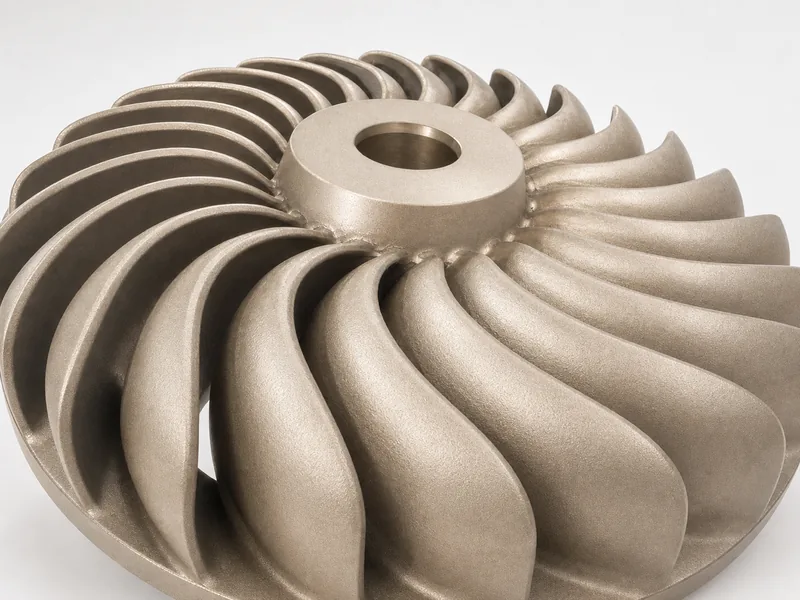

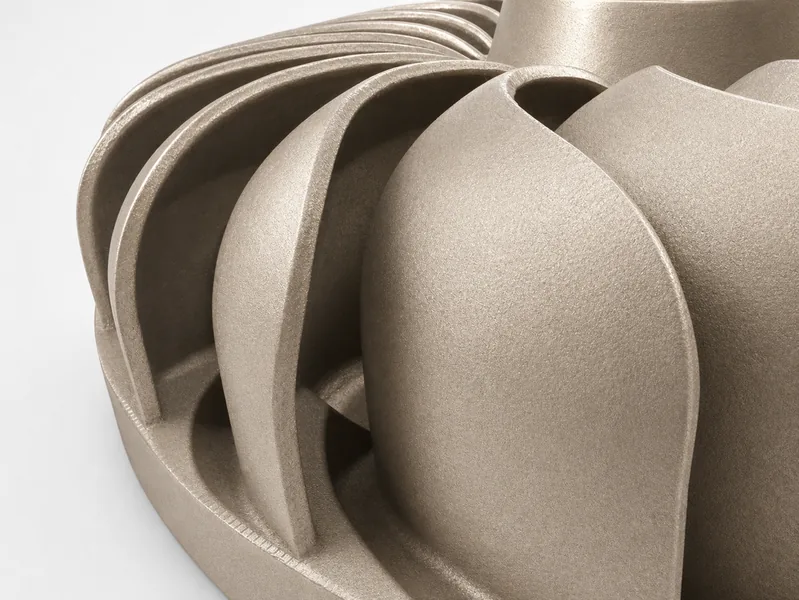

Open Impeller

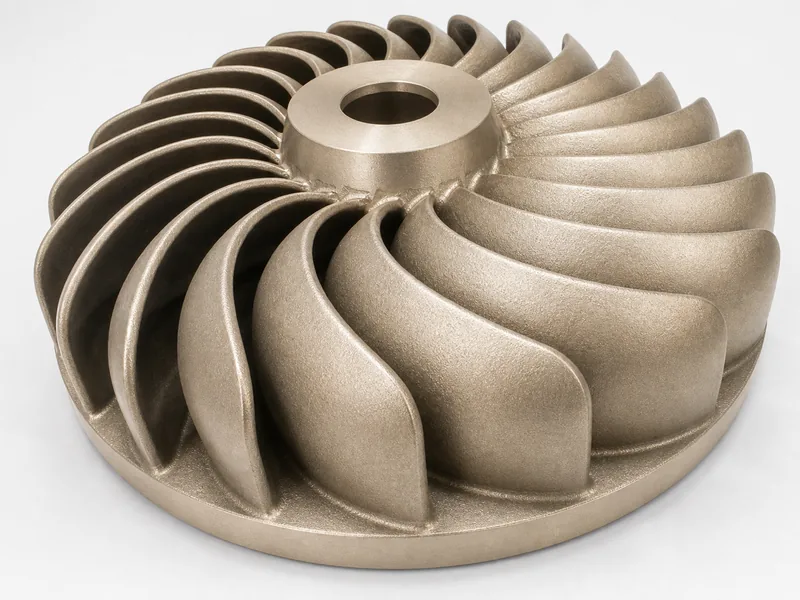

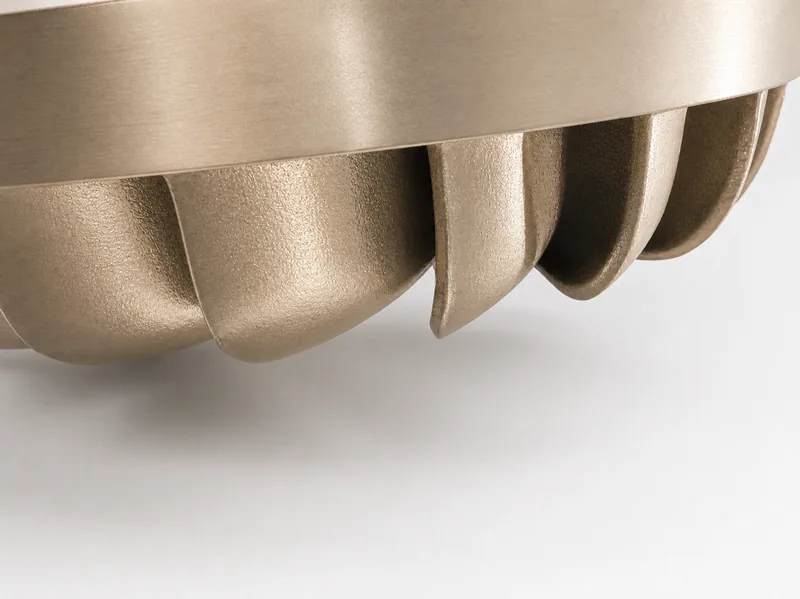

Open Impeller Example 02
Open impeller showing blade curvature, hub configuration, and accessible flow geometry.
Geometry That Requires Careful Review
1
Internal Flow Passages
Enclosed passages can require detailed review of internal geometry and manufacturing access.
2
Blade Curvature
Blade shape and spacing are important geometric features of an impeller.
3

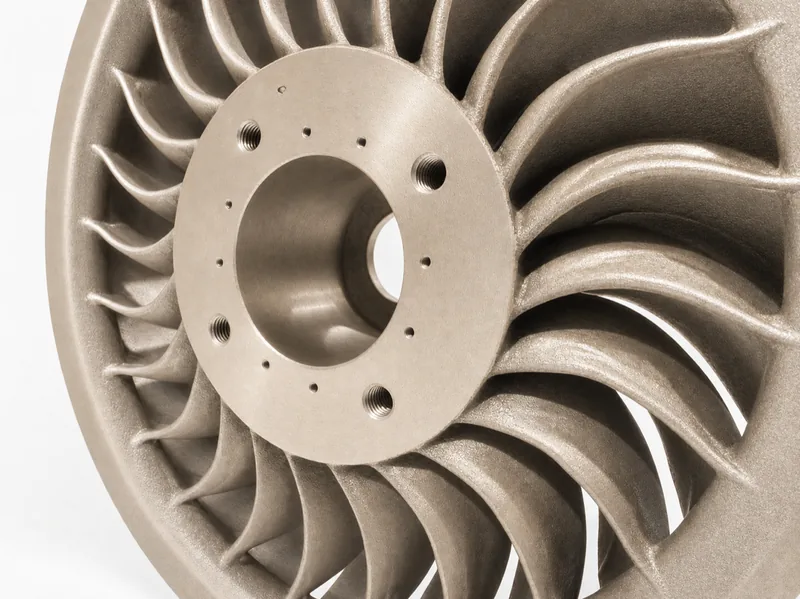

Hub Geometry
The hub and connection area must be reviewed against the supplied technical requirements.
4
Open and Enclosed Configurations
Different impeller configurations require different geometry and manufacturing considerations.
What Can You Send for an Initial Review?
Drawing and specification
CAD data
Scan data
Existing component or clear photographs
The available information is reviewed first to determine what additional technical data may be required.
Customer confidentiality matters. Selected components are presented without customer identities, project references, drawings, or confidential technical data.
Documented Pump Impeller Projects
The following pump impeller work is documented elsewhere on this site, in published technical papers or in externally reported case studies.
Vertical pump impeller replacement
- Component
- Vertical pump impeller
- Finished diameter
- 1,270 mm
- Weight
- 900 kg
- Material
- ASTM B148 C95500 aluminium bronze
- Reference condition
- Cracked, cavitation-corrosion damaged impeller in a pump more than 20 years old
- Manufacturing route
- One-off 3D-printed sand mould, assembled and poured
Double-suction impeller casting
- Component
- Double-suction impeller
- Diameter
- 620 mm
- Part weight
- 250 kg each
- Material
- Lead-tin bronze
- Quantity
- Four castings
- Manufacturing route
- Casting simulation and 3D-printed sand moulds and cores
FC300 impeller casting
- Component
- Pump impeller
- Material
- FC300 gray cast iron
- Manufacturing route
- Casting design, simulation and 3D-printed sand moulds
Further pump component work, including a steel pump bowl and a cast iron pump casing, is collected in engineering case studies.
Impeller Materials
Documented impeller and pump-component castings on this site include C95500 and C95800 aluminium bronze, lead-tin bronze, FC300 and FC25 gray cast iron, FCD450 ductile iron and stainless steel. Not every alloy suits every pump application: material selection depends on the operating fluid, duty, corrosion and erosion conditions, the specification the component must meet, and the wider project requirements.
Full specifications are listed in the materials database.
Technical Evidence & Published Work
Selected impeller and propeller work involving 3D sand-printed moulds has been documented in industry technical publications.
Industry Technical Publication · 2019
Production of Aluminium Bronze Propellers Using 3D Sand Printed Moulds
Nattinee Valun-araya, Ongkarn Chantarasukkasem, John Pearce
Metal Casting Technologies, 2nd Quarter 2019 · pp. 18–23
Documents C95800 nickel aluminium bronze propellers of 800, 1,000 and 1,200 mm diameter cast in binder-jet 3D sand printed moulds, including spherical feeders, reported production times and tensile test results.
Read Publication Summary- 3D sand printing for part replacement — includes the 1,270 mm vertical pump impeller replacement.
- Spherical-shaped feeders in 3D sand printed moulds — feeding trials including pump impeller castings.
- All research and publications
Pump Impeller Manufacturing FAQ
Can a pump impeller be manufactured from an existing component?
Yes, where the existing component provides usable reference geometry. The part is scanned or measured, the geometry is reconstructed in CAD, and the reconstruction is reviewed before casting engineering begins. Worn, eroded or missing sections have to be interpreted during that review, so feasibility is confirmed after the engineering review rather than before it.
Can you manufacture a replacement impeller if CAD data is available?
Yes. When drawings or CAD data are available, the geometry is reviewed for castability, machining allowance and interface compatibility, then prepared for casting engineering. Available data usually shortens the reverse engineering stage but does not remove the engineering review.
How are closed impeller internal passages produced?
The enclosed passages between the shrouds are formed by sand cores. For closed impellers those cores can be produced by 3D sand printing, which allows curved passage geometry to be produced without core boxes. The metal impeller is then cast in the assembled mould and core package.
Why use 3D-printed sand moulds and cores for replacement impellers?
Replacement impellers are typically required in single units or small quantities, and the original pattern equipment is often unavailable. Printing the mould and cores directly from CAD data removes the need to build new patterns and core boxes for those quantities. The suitability of this route still depends on geometry, material, quantity and project requirements.
What information is required to evaluate a pump impeller project?
A drawing, CAD file, scan data, or the existing component with clear photographs and principal dimensions. Material, operating conditions, required quantity and the machining and inspection scope help define the manufacturing route during the review.
Can large industrial pump impellers be produced using this workflow?
Large impellers have been produced through this workflow; the documented vertical pump impeller was 1,270 mm in finished diameter and 900 kg in cast weight. Size limits for any specific component depend on the mould package, print volume and foundry capacity confirmed during the engineering review.
Need to Reproduce or Develop an Impeller?
Send an available drawing, CAD file, scan data, or clear photographs of the existing component for an initial technical discussion.
Published impeller and pump-component case studies are summarised in Research & Publications.
